DTP2 Series

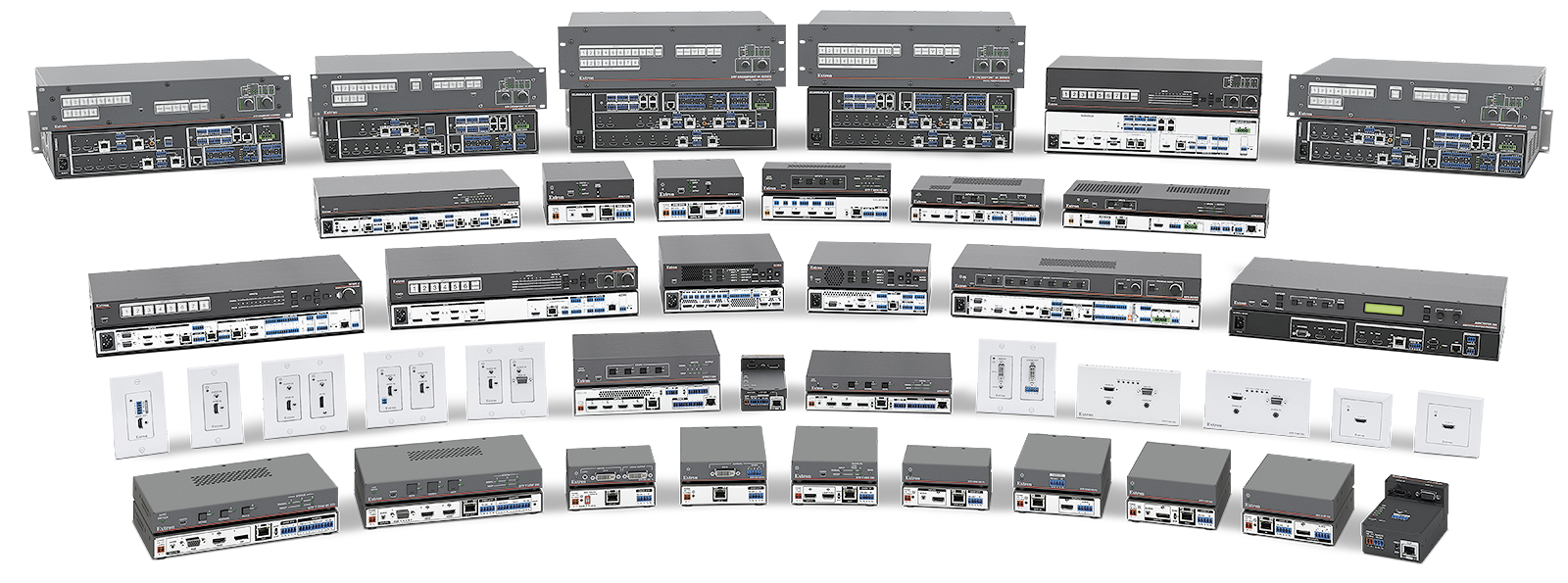

DTP2 products build upon the extensive DTP Systems platform to reach new heights in professional AV integration. They support data rates up to 18 Gbps and incorporate advanced features such as 4K/60 @ 4:4:4, HDCP 2.3, and HDR video to let you create the sophisticated, yet simple to use systems that customers demand. All extend video, audio, and control up to 330 feet (100 meters) at every video resolution.

DTP2 Endpoint Features

Transmits video, bidirectional control, and analog audio up to 330 feet (100 meters) over a shielded CATx cable

DTP2 transmitters and receivers provide high reliability and maximum performance on an economical and easily installed cable infrastructure.

Supports computer and video resolutions up to 4K/60 @ 4:4:4

DTP2 endpoints support HDMI 2.0b specification features including data rates up to 18 Gbps and HDR video. Support of 4K/60 at 4:4:4 color sampling requires connection to a matching DTP2 product.

HDCP 2.3 compliant

Ensures display of content-protected 4K video media and interoperability with other HDCP‑compliant devices.

Bidirectional remote power capability

For simplified installation, a DTP2 endpoint can be remotely powered by a DTP2‑enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP2 endpoint product.

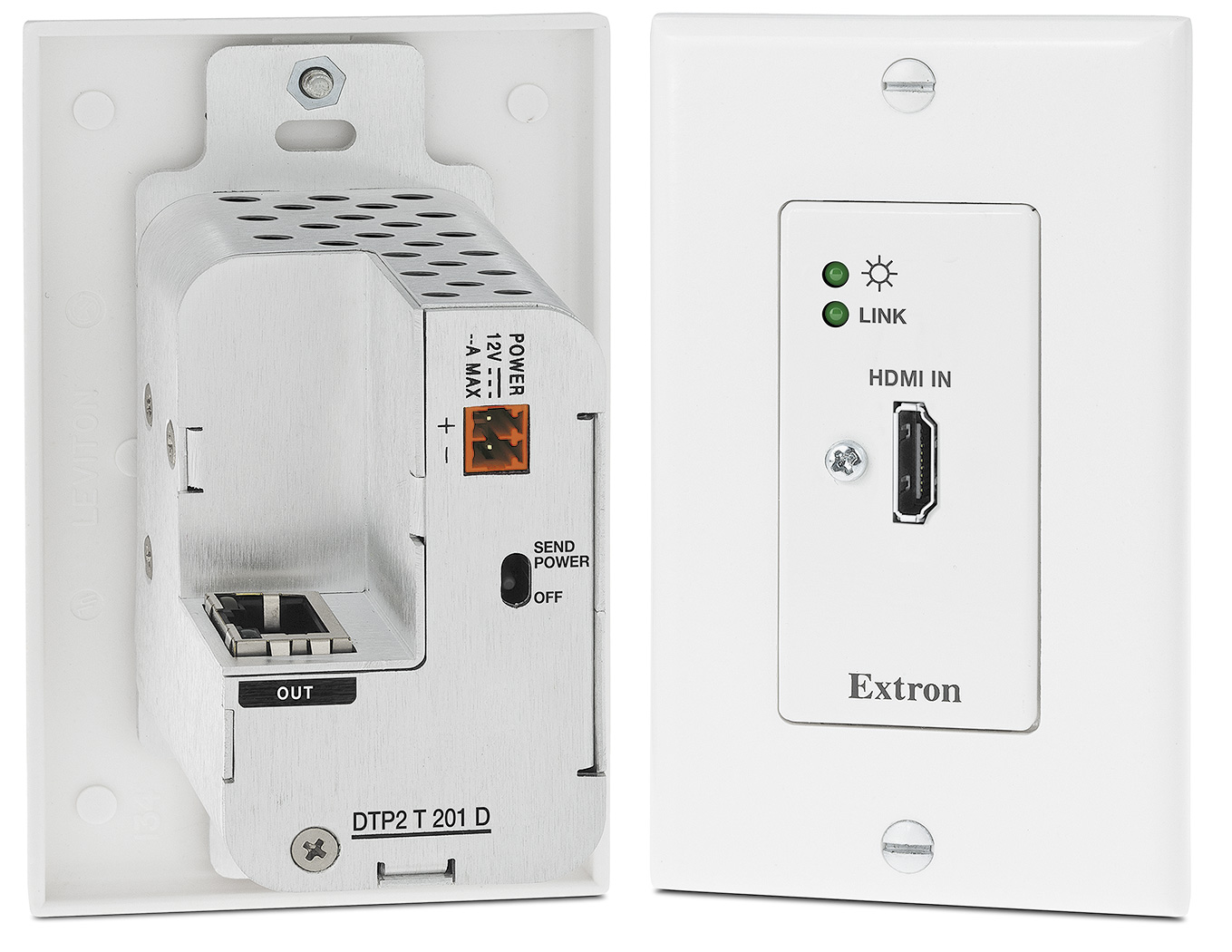

DTP2 T 201 D

4K/60 HDMI DTP2 Transmitter – Decorator-Style Wallplate

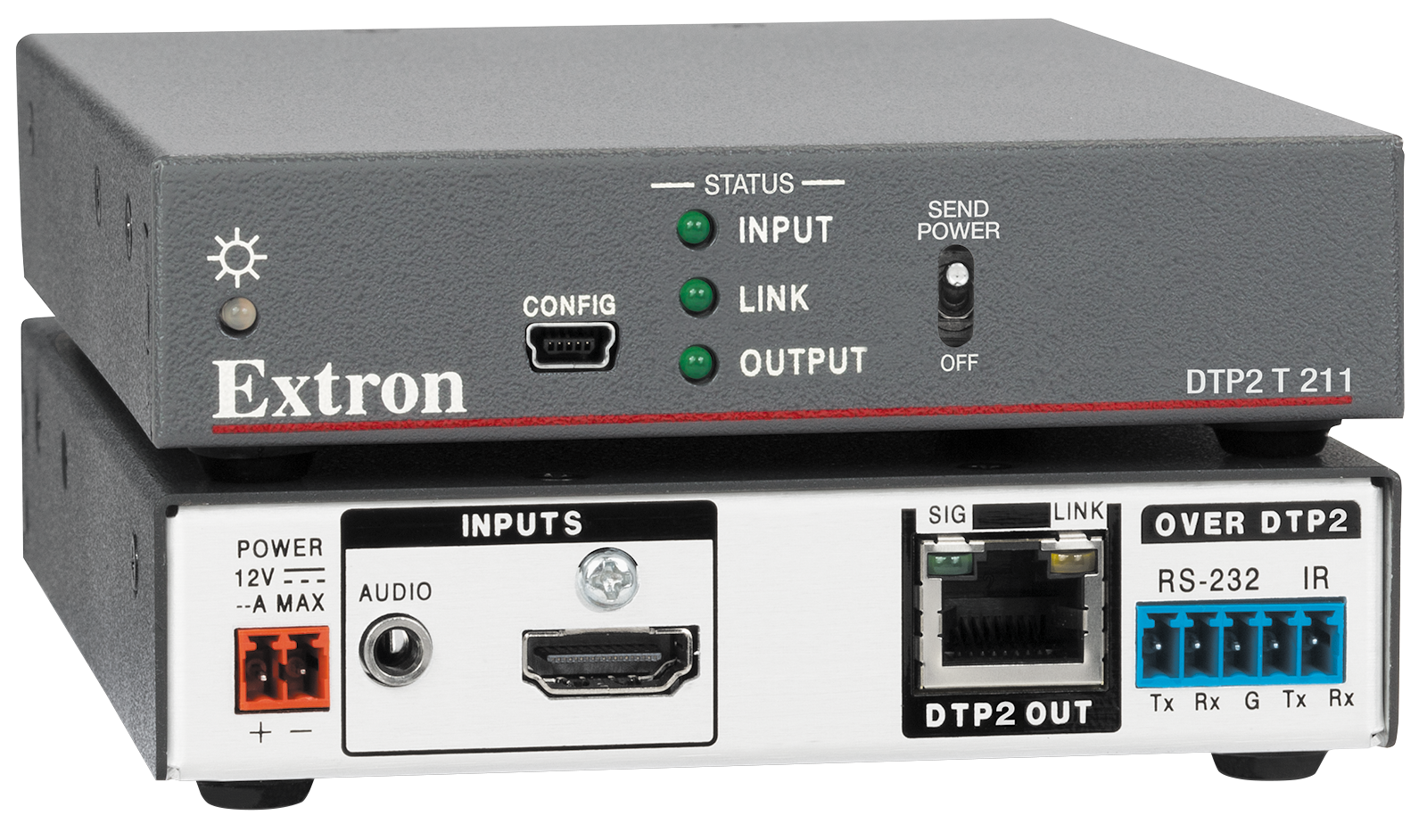

DTP2 T 211

4K/60 HDMI DTP2 Transmitter with Audio Embedding

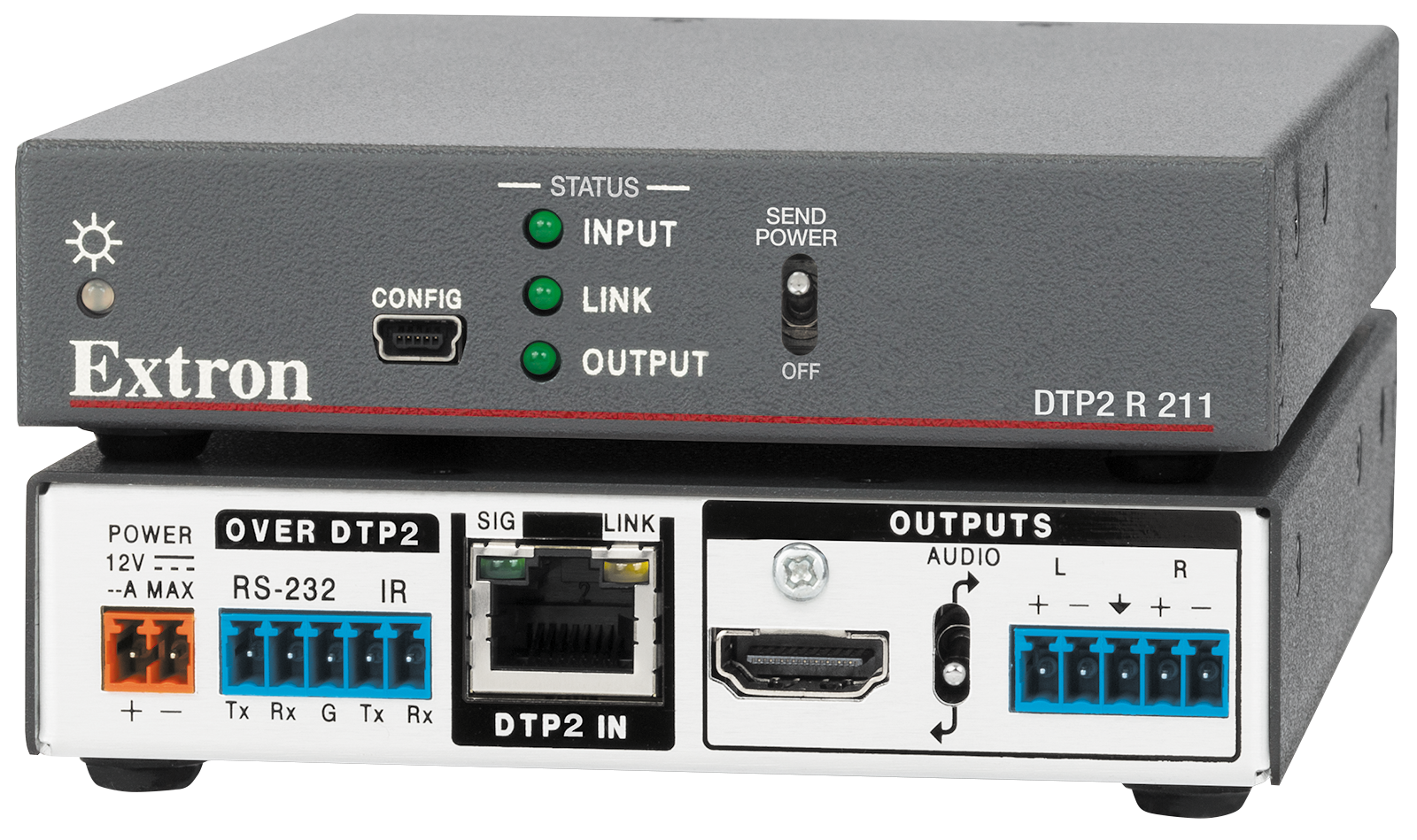

DTP2 R 211

4K/60 HDMI DTP2 Receiver with Audio De-Embedding

DTP2 Switcher Features

Auto-switching between inputs

Auto-switching allows for simple, unmanaged installation in locations such as in a lectern or under a conference table. When multiple inputs are active, the switching priority is configurable.

Analog stereo audio embedding/de-embedding

Analog audio inputs on all DTP2 products support audio embedding; and audio de-embedding is supported on analog audio outputs of all DTP2 products.

Ethernet monitoring and control

Enables control and proactive monitoring over a LAN, WAN, or the Internet.

Compatible with HDBaseT‑enabled devices

Switching products with DTP2 output can be configured to send video and embedded audio, plus bidirectional RS‑232 and IR signals, to an HDBaseT‑enabled display.

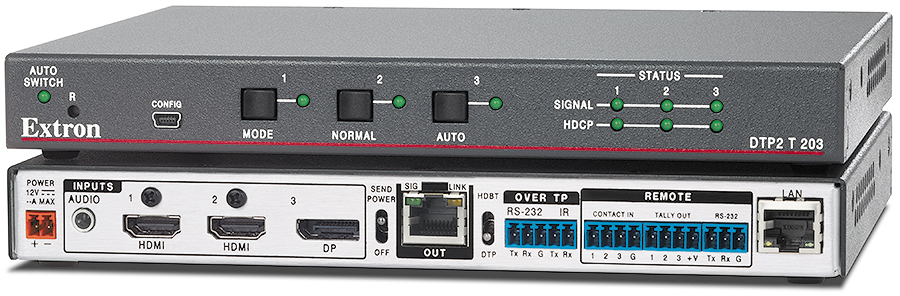

DTP2 T 203

Three Input 4K/60 Switcher with Integrated DTP2 Transmitter

More

Auto-switching between inputs simplifies operation
More

Supports computer and video resolutions up to 4K/60 @ 4:4:4 and HDCP 2.3
More

Long distance transmission of HDMI, DisplayPort, analog audio, and control over shielded CATx cable up to 330 feet (100 meters)
More

Source signal presence and HDCP status LEDs provide visual feedback
More

Supports local or remote power
More

Stereo analog input for audio embedding is assignable to any video input
More

Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, and HD lossless audio
More

DisplayPort input supports DisplayPort SST - Single Stream Transport up to 21.6 Gbps
More

Configurable for compatibility with HDBaseT-enabled displays
More

Bidirectional RS-232/IR extension simplifies AV device control
More

Contact closure and tally outputs facilitate easy intergration with Extron Show Me cables
More

Ethernet control with built-in web server and RS-232 insertion

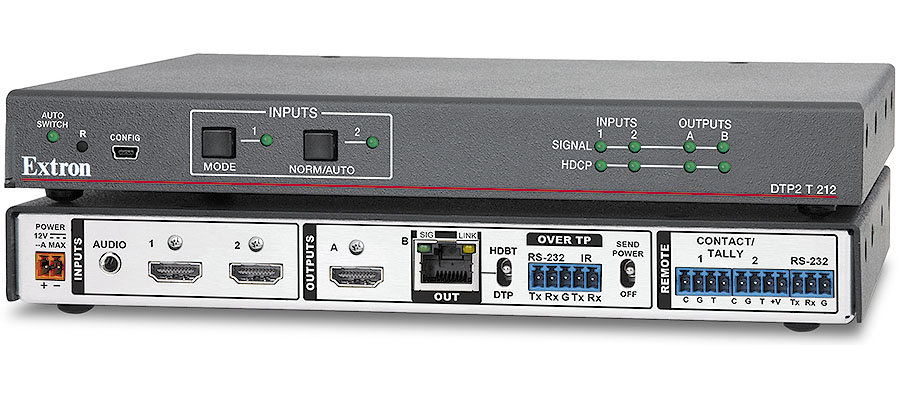

DTP2 T 212

Two Input 4K/60 HDMI Switcher with Integrated DTP2 Transmitter and HDMI Output

More

Front panel input selection buttons with auto-switching capability
More

HDMI and DTP2 outputs are configurable for simultaneous operation, or the HDMI output may be assigned to either HDMI input
More

LED indicators provide real-time status for signal presence and power
More

RS-232 and contact closure with tally output enable easy integration with control systems
More

Configurable analog stereo audio embedding
More

Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, HD lossless audio formats, and CEC
More

Send digital video with embedded audio, analog audio, and control up to 330 feet (100 meters) over a shielded CATx cable
More

Configurable for compatibility with HDBaseT-enabled displays
More

Simultaneous bidirectional RS-232 and IR pass-through provides control capabilites to remote devices
More

Twisted pair connection is configurable to provide remote power to a connected DTP2-enabled receiver
More

Supports local or remote power

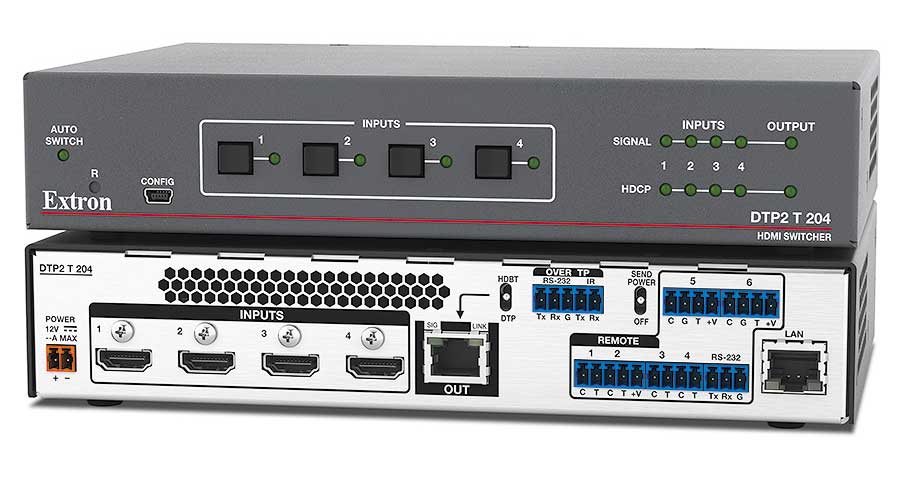

DTP2 T 204

Four Input 4K/60 HDMI Switcher with Integrated DTP2 Transmitter

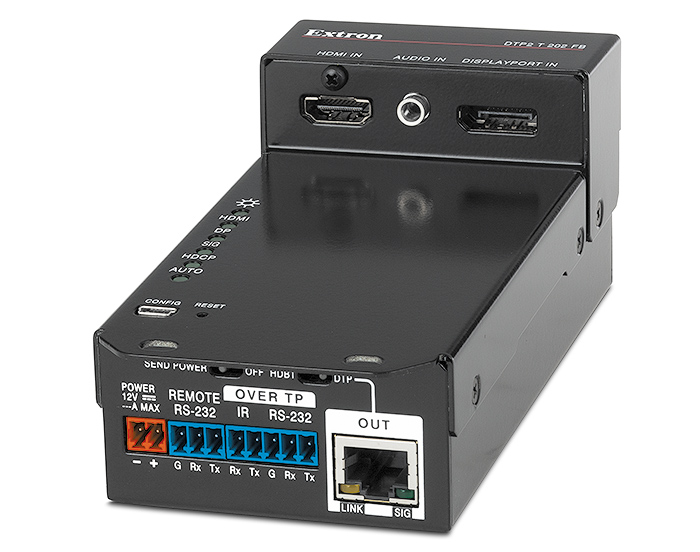

DTP2 T 202 FB

Two Input 4K/60 DTP2 Transmitter for Floor Boxes

More

Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio
More

Source signal presence and power indication provides real-time verification of active signal
More

DTP2 T 202 FB is compatible with OBO Bettermann, MK by Honeywell, Electraplan, and PUK floor boxes for mounting flexibility
More

Stereo analog input for audio embedding is assignable to either video input
More

DisplayPort input supports DisplayPort SST – Single Stream Transport up to 21.6 Gbps
More

Supports computer and video resolutions up to 4K/60 @ 4:4:4 and HDCP 2.3
More

Configurable for compatibility with HDBaseT-enabled displays
More

Long distance transmission of HDMI or DisplayPort video, analog audio, and control over shielded CATx cable up to 330 feet (100 meters)
More

Supports local or remote power
More

RS-232 control for input switching
More

Bidirectional RS-232/IR extension simplifies AV device control

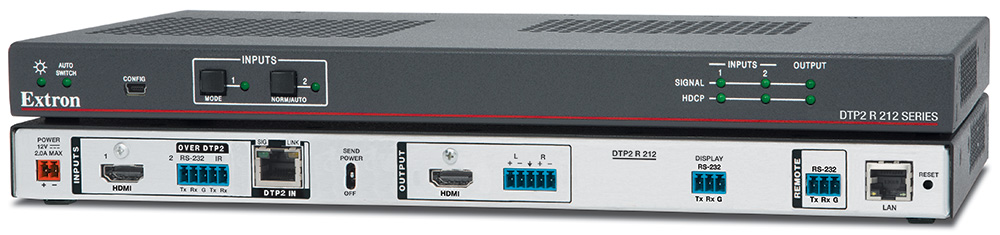

DTP2 R 212

4K/60 HDMI DTP2 Receiver and Switcher with Audio De‑Embedding

More

Compact, low profile enclosure offers discreet mounting flexibility
More

Front panel input selection buttons with auto-switching capability
More

Supports video signals at resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3
More

Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, HD lossless audio formats, and CEC
More

LED indicators provide real-time status for signal presence and power
More

Local HDMI input supports video source installed near display
More

Simultaneous bidirectional RS-232 and IR pass-through provides control capabilites to remote devices
More

Receives digital video with embedded audio, analog audio, and control up to 330 feet (100 meters) over a shielded CATx cable
More

Captive screw stereo output is selectable for de-embedded or pass through analog audio
More

Dedicated RS-232 port for control of display or other external device
More

Ethernet control with built-in web server and RS-232 insertion

Backward Compatible with DTP

Even as they offer all-new performance and capability, DTP2 products retain compatibility with the whole family of DTP products. Any DTP or DTP2 transmit port can be connected to any DTP or DTP2 receive port to extend video, audio, and control signals. DTP2 transmitters and DTP2 receivers must be connected to each other to support remote power, or transmit video data rates at 18 Gbps.
