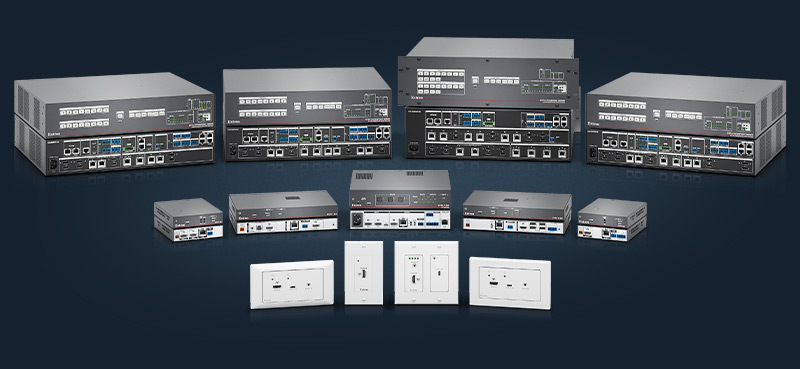

DTP3 Series

DTP3 is Extron’s third generation, digital twisted pair solution. For maximum image quality and minimal latency, all video signals up to 18 Gbps are transported without compression. DTP3 incorporates advanced features such as 4K/60 @ 4:4:4, HDCP 2.3, and HDR video to let you create the sophisticated, yet simple to use systems that customers demand. All extend video, audio, and control up to 330 feet (100 meters) at every video resolution.

DTP3 Endpoint Features

DTP Systems

Transmits video, bidirectional control, and analog audio up to 330 feet (100 meters) over a shielded CAT 6A cable

DTP3 transmitters and receivers provide high reliability and maximum performance on an economical and easily installed cable infrastructure.

18 Gbps

Supports computer and video resolutions up to 4K/60 @ 4:4:4

DTP3 endpoints support HDMI 2.0b specification features including data rates up to 18 Gbps and HDR video. Support of 4K/60 at 4:4:4 color sampling requires connection to a matching DTP3 product.

HDCP 2.3 compliant

HDCP 2.3 compliant

Ensures display of content-protected 4K video media and interoperability with other HDCP‑compliant devices.

USB

USB Support

Select DTP3 products are available to support USB data, USB-C alt mode DisplayPort video, and power delivery.

DTP3 Transmitters

DTP3 T 202 EU/MK

Two Input 4K/60 DTP3 Transmitter for USB-C and HDMI - for Flex55 and EU/MK Junction Boxes

  • EDID Minder® automatically manages EDID communication between video source and display

  • Signal status LEDs provide visual feedback

  • Designed to mount in two-gang EU and MK-type electrical junction boxes – both EU and MK frames are included. Shown with EU frame attached

  • Twisted pair connection is configurable to provide remote power to a connected DTP3-enabled receiver

  • Sends USB-C, HDMI, and control up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, and HD lossless audio formats

  • USB-C input supports DisplayPort Alt-mode video

  • Configurable analog stereo audio embedding

  • Supports local or bidirectional remote power

  • Configurable for compatibility with HDBaseT displays

  • Bidirectional RS-232 pass-through provides control capabilities to remote devices

  • RS-232 connection for control of the unit

DTP3 T 212 D

Two Input 4K/60 DTP3 Transmitter for USB-C & HDMI – Decorator-Style Wallplate

  • Signal status LEDs provide visual feedback

  • Mounts in two-gang electrical junction box

  • Bidirectional RS-232 pass-through provides control capabilities to remote devices

  • RS-232 connection for control of the unit

  • Supports local or bidirectional remote power

  • Configurable analog stereo audio embedding

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, HD lossless audio formats, and CEC

  • USB-C input supports DisplayPort Alt-mode video

  • Twisted pair connection is configurable to provide remote power to a connected DTP3-enabled receiver

  • Sends USB-C, HDMI, and control up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Configurable for compatibility with HDBaseT displays

  • EDID Minder® automatically manages EDID communication between video source and display

DTP3 T 101 D

4K/60 DTP3 Transmitter for HDMI - Decorator-Style Wallplate

  • Supports local or bidirectional remote power

  • Signal presence LED provides visual feedback

  • EDID Minder® automatically manages EDID communication between video source and display

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, HD lossless audio formats, and CEC

  • Sends HDMI up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Rear mounted USB-C configuration port

  • Twisted pair connection is configurable to provide remote power to a connected DTP3-enabled receiver

  • Configurable for compatibility with HDBaseT displays

  • Mounts in one-gang electrical junction box

DTP3 T 301

DTP3 Transmitter for 4K/60 HDMI and USB 2.0

  • Compact, low profile enclosure offers discreet mounting flexibility

  • Front mounted USB-C configuration port

  • Supports video signals at resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3

  • LED indicators provide real-time status for signal presence and power

  • Supports local or remote power

  • Configurable analog stereo audio embedding

  • Integrated USB type B port supports up to 480 Mbps

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, and HD lossless audio formats

  • Send HDMI, USB data, and control up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Bidirectional RS-232 pass-through provides control capabilities to remote devices

  • Mirrored HDMI output enables local monitor connection

DTP3 T 203

Three Input 4K/60 Switcher with Integrated DTP3 Transmitter

  • Compact, half rack enclosure offers discreet mounting flexibility

  • Front mounted USB-C configuration port

  • Supports video signals at resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3

  • USB-C charging, signal presence and HDCP status LEDs provide visual feedback

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, HD lossless audio formats, and CEC

  • USB-C input supports DisplayPort alt mode video and provides up to 60 W to the USB-C source

  • Buffered HDMI output enables local monitor connection

  • Send video and control up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Configurable for compatibility with HDBaseT displays

  • Twisted pair connection is configurable to provide remote power to a connected DTP3-enabled receiver

  • Bidirectional RS-232 pass-through provides control capabilities to remote devices

  • Ethernet, RS-232, and contact/tally ports provide comprehensive switcher control

DTP3 T 202

4K/60 HDMI DTP3 Transmitter with Input Loop-Through

  • Compact, low profile enclosure offers discreet mounting flexibility

  • Front mounted USB-C configuration port

  • Supports video signals at resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3

  • Twisted pair connection is configurable to provide remote power to a connected DTP3-enabled receiver

  • Configurable for compatibility with HDBaseT displays

  • Signal presence and HDCP status LEDs provide visual feedback

  • Supports local or remote power

  • HDMI loop through enables local monitor connection

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, HD lossless audio formats, and CEC

  • Send HDMI, and control up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Bidirectional RS-232 pass-through provides control capabilities to remote devices

DTP3 Receivers

DTP3 R 301

DTP3 Receiver for 4K/60 HDMI and USB 2.0

  • Compact, low profile enclosure offers discreet mounting flexibility

  • Front mounted USB-C configuration port

  • Supports video signals at resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3

  • LED indicators provide real-time status for signal presence and power

  • Twisted pair connection is configurable to provide remote power to a connected DTP3-enabled transmitter

  • Receives HDMI, USB data, and control up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Bidirectional RS-232 pass-through provides control capabilities to remote devices

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, and HD lossless audio formats

  • Integrated four port USB hub supports up to 480 Mbps

  • Captive screw stereo output for de-embedded two-channel audio

DTP3 R 201

4K/60 HDMI DTP3 Receiver with Audio De-Embedding

  • Compact, low profile enclosure offers discreet mounting flexibility

  • Front mounted USB-C configuration port

  • Supports video signals at resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3

  • Twisted pair connection is configurable to provide remote power to a connected DTP3-enabled transmitter

  • LED indicators provide real-time status for signal presence and power

  • Supports local or remote power

  • Supported HDMI specification features include data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D formats, HD lossless audio formats, and CEC pass-through

  • Receives digital video and control up to 330 ft. (100 m) over a shielded CAT 6A cable

  • Bidirectional RS‑232 pass-through provides control capabilities to remote devices

  • Captive screw stereo output for de-embedded two-channel audio

Product Information

DTP3 CrossPoint 884

4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8

DTP3 CrossPoint 662

4K/60 Presentation Matrix Switcher Configurable from 6x8 to 8x6

DTP3 CrossPoint 642

4K/60 Presentation Matrix Switcher Configurable from 6x6 to 8x4

DTP3 CrossPoint 622

4K/60 Presentation Matrix Switcher Configurable from 6x4 to 8x2

DTP3 T 202 EU/MK

Two Input 4K/60 DTP3 Transmitter for USB-C and HDMI - for Flex55 and EU/MK Junction Boxes

DTP3 T 212 D

Two Input 4K/60 DTP3 Transmitter for USB-C & HDMI – Decorator-Style Wallplate

DTP3 T 101 D

4K/60 DTP3 Transmitter for HDMI – Decorator-Style Wallplate

DTP3 T 301

DTP3 Transmitter for 4K/60 HDMI and USB Data

DTP3 R 301

DTP3 Receiver for 4K/60 HDMI and USB Data

DTP3 T 203

Three Input 4K/60 Switcher with Integrated DTP3 Transmitter

DTP3 T 202

HDMI 4K/60 DTP3 Transmitter with Input Loop-Through

DTP3 R 201

HDMI 4K/60 DTP3 Receiver with Input Audio De-Embedding

MGP 641 xi

4K/60 HDMI Multi-Window Processor with DTP3 Extension

XTP DTP 22

Shielded Twisted Pair Cable for XTP Systems and DTP Systems

XTP DTP 22 Series

Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems
