Five Input HDCP-Compliant Scaler with Seamless Switching

Five Input HDCP-Compliant Scaler with Seamless Switching

Three HDMI and two auto-detecting universal analog inputs
Simultaneous HDMI and high resolution analog video outputs
Advanced 30-bit scaling engine and SpeedSwitch technology

Key Features for Enhanced Presentation Systems

True seamless switching and picture-in-picture
Flexible operation via Ethernet, RS-232, and contact closure ports
Optional audio switching and 3G-SDI output for a complete AV solution

More

Advanced Extron video signal processing with deinterlacing up to 1080i, and Deep Color processing
Close
More

Three HDMI inputs support data rates up to 6.75 Gbps, Deep Color, and HD lossless audio formats
Close
More

HDMI, high resolution analog, and optional 3G/HD-SDI outputs with selectable output rates up to 1920x1200, including 1080p and 2K
Close
More

Ethernet, RS-232 serial, wired IR, and contact closure control
Close
More

SpeedSwitch enables exceptional switching speed between HDCP-compliant devices
Close
More

Available audio models with 5 input audio switching and balanced and unbalanced captive screw inputs
Close
More

True seamless switching with selectable cut or dissolve transitions
Close
More

Picture-in-picture allows unrestricted two window display of standard definition and high resolution digital and analog video sources
Close
More

Available S/PDIF digital audio output
Close
More

Two universal auto-detecting analog video inputs accommodate a wide variety of formats including RGB, HDTV, S-video and composite
Close
More

DVS 605 models with audio can embed analog input audio signals onto the HDMI output, and extract embedded audio signals from HDMI inputs
Close
More

Available fixed and variable line outputs can be balanced or unbalanced, as well as stereo or dual mono
Close

DVS 605

Five Input HDCP-Compliant Scaler with Seamless Switching

Most InAVative Commercial Video Processing or Distribution Product - DVS 605

The Extron DVS 605 is a high performance, HDCP-compliant video scaler that includes three HDMI and two universal analog video inputs, and simultaneous HDMI and analog high resolution outputs. Create professional quality AV presentations with true seamless switching and flexible picture-in-picture capability. The DVS 605 streamlines system integration and operation with Auto Format Input Detection and ultra-fast source switching with continuous EDID management and HDCP authentication. With advanced Extron 30-bit video processing to deliver optimized scaling quality, the DVS 605 is ideal as the integration centerpiece for incorporating digital and analog AV sources.

The DVS 605 is also available with optional audio switching and HDMI audio embedding/de-embedding, as well as a 3G-SDI/HD-SDI output with genlock.

Key Features

Integrates HDMI and analog video sources into presentation systems
Three HDMI inputs and two universal auto-detecting analog video inputs
Simultaneous outputs for HDMI and analog RGB or component video
Optional 3G-SDI/HD-SDI output with genlock
True seamless switching
PIP - picture-in-picture
Auto-switching between inputs
Auto Input Format Detection
Selectable output rates from 640x480 to 1920x1200, including 1080p/60 and 2K
Advanced scaling engine with 30‑bit precision processing and motion-adaptive deinterlacing for signals up to 1080i
HDCP compliant
Key Minder^®
EDID Minder^®
SpeedSwitch^®
Essential audio integration and processing features including HDMI audio embedding and de-embedding – available in models with audio switching
Control and monitoring via Ethernet, RS-232, USB, or on-screen menus
Contact closure remote control

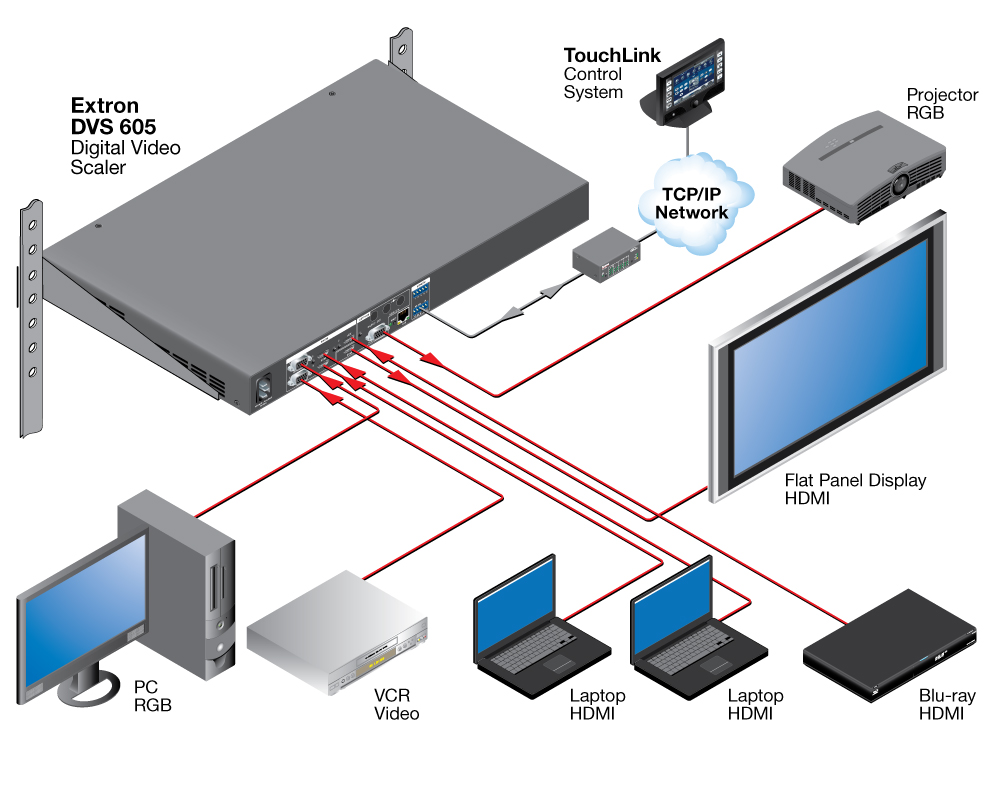

DVS 605 Diagram

Featured Media

Product Overview Video

DVS 605

Extron introduces the DVS 605 HDCP-compliant scaler and describes its Extron-exclusive video processing and integrator-friendly features.

Extron Out of the Box Video

DVS 605 A - Out of the Box

An Extron Sr. Applications Engineer integrates a brand new DVS 605 A into an AV system, and quickly brings it into full operation with HDMI and analog AV sources.

Video from InfoComm 2011

Video from InfoComm 2011

Extron describes the DVS 605 Five Input HDCP-Compliant Scaler with Seamless Switching.

4:4:4 Signal Processing

4:4:4 Signal Processing

Dave Pincek, Vice President of Product Development, explains why 4:4:4 processing is necessary for systems that incorporate computer content.

Learn More

DVS 605

DVS 605

Five Input HDCP-Compliant Seamless Switching Scaler.

Extron Scaling Technology

Extron Scaling Technology

Pro AV Scaling for Every Application

4:4:4 Test Pattern

4:4:4 Test Pattern

Download the Extron 4:4:4 test pattern for verifying system color processing performance
