IPL EXP PDU4H

Next Generation Power Management

The IPL EXP PDU4H is a powerful and versatile control system power expansion interface that provides centralized power management for small to medium sized AV systems. It delivers the ability to control individual AC outlets remotely and provides powerful reporting and troubleshooting when used within an Extron control system, including aggregate current sensing, for monitoring power consumption of connected devices. The IPL EXP PDU4H is ethernet enabled and features four AC outlets, four override input ports, and a relay for additional system support. It is designed to be used with an Extron IPCP Pro xi Series control processor for secure, encrypted power control of attached devices. It can also operate independently using a secure Extron API, enabling seamless integration for specialized applications. The IPL EXP PDU4H is housed in a compact 1U half rack enclosure that offers a broad variety of mounting options.

Feature Highlights

Works in three modes of operation for system design flexibility

  • Secure Platform Device allows for secure, encrypted AV control interface for management from all Extron IPCP Pro xi Series control processors
  • Independent operation using a secure Extron API allows for compatibility with control systems within a secure Ethernet environment
  • Four manual control contact closure ports for power management directly from the rear of the control system expansion interface

Supports Worldwide Power Requirements

  • Provides four independent 100/240 VAC, 12/10A max, IEC female outlets

Powerful reporting and troubleshooting

  • When used with an Extron control system, aggregate current sensing can be used for monitoring power consumption of connected devices

Extra Protection for your powered products

  • Multiple, single stage MOVs provide surge protection allowing for up to 1,750 Joules of protection for attached devices
  • 24V relay can be tied to a control system for voltage threshold alarms
  • 12A circuit breaker button for over current protection

Power up Sequencing

  • In the event of power loss and restart, power outlet receptacles can be powered on sequentially with a user-configurable delay between each one preventing a power overload spike and a blown fuse or tripped circuit breaker from occurring.

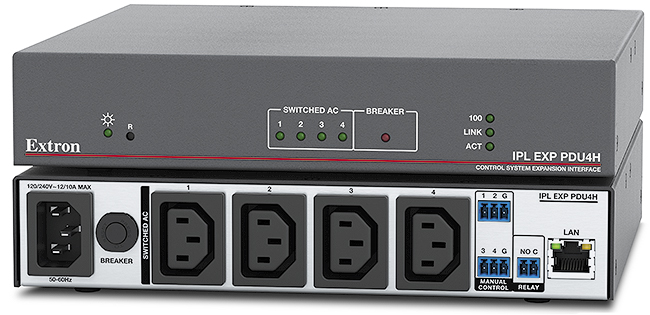

IPL EXP PDU4H

IPL EXP PDU4H

  • Reset button and LED indicator

  • One 100/240 VAC, 12/10A max, IEC male input

  • Single 12A circuit breaker button for over-current protection

  • Four 100/240 VAC, 12/10A max, IEC female outlets for worldwide use

  • Four manual control ports for control of the outlets via contact closure

  • Relay output for connecting to external alarms

  • Ethernet port for network control and management

  • LED indicators to assist in monitoring and troubleshooting of control ports and network
