MediaPort 200

HDMI and Audio to USB Scaling Bridge

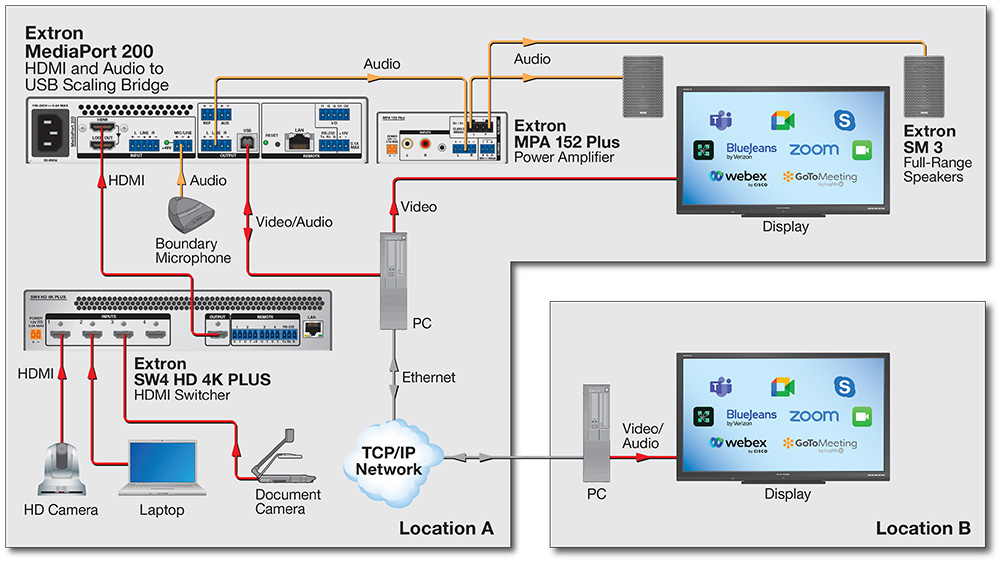

The Extron MediaPort 200 is an HDMI to USB bridge for integrating pro AV sources or systems with software codec conferencing applications. It works seamlessly with a computer using generic USB video and audio drivers. The MediaPort ^® features an HDMI input with HDCP-compliant loop through, accepts signals up to 1920x1200, and scales video to a USB 2.0 output. Audio features include program and mic inputs, HDMI audio de‑embedding, and USB bidirectional audio, plus AEC reference and line level outputs. The MediaPort 200 also includes DSP with EQ, filters, mixing, dynamics, and ducking. This allows the MediaPort 200 to serve as a complete soft codec interface, with the added flexibility of integrating into larger hardware codec or DSP systems. The MediaPort 200 enables versatile integration of conferencing computers into pro AV system designs.

Key Features

• Seamlessly integrates pro AV sources or systems into software codec applications
• USB 2.0 device connection uses generic USB drivers for universal compatibility
• Video scaling provides USB output from 320x180 to 1080p/15 to match common software codec requirements
• Scaled USB streaming video output with MJPEG encoding
• Integrated audio DSP with comprehensive audio mixing and signal processing capabilities for HDMI, USB, and analog audio
• AEC reference output
• HDCP-compliant HDMI input and loop-through
• USB 4x2 audio interface
• Supports popular software communications platforms including Microsoft Teams^®, Zoom™, Adobe^® Connect™, Cisco WebEx^®, Facetime^®, Google Meet^®, GoToMeeting^®, Lifesize^® Clearsea™, and Skype^®
• Compatible with popular unified communications (UC) room systems including Barco^® ClickShare^®, Cisco WebEx^®, Microsoft Teams^®, and Zoom™ room systems
• Accepts HDMI computer and video resolutions up to 1080p/60 and 1920x1200
• Mic/line input with 48 volt phantom power
• Front panel LED indicators for HDMI and USB signal status
• Internal video test patterns and pink noise generator for calibration and setup
• Ethernet monitoring and control
• RS-232 control port
• Built-in Web pages
• Easy setup and commissioning with Extron's PCS - Product Configuration Software
