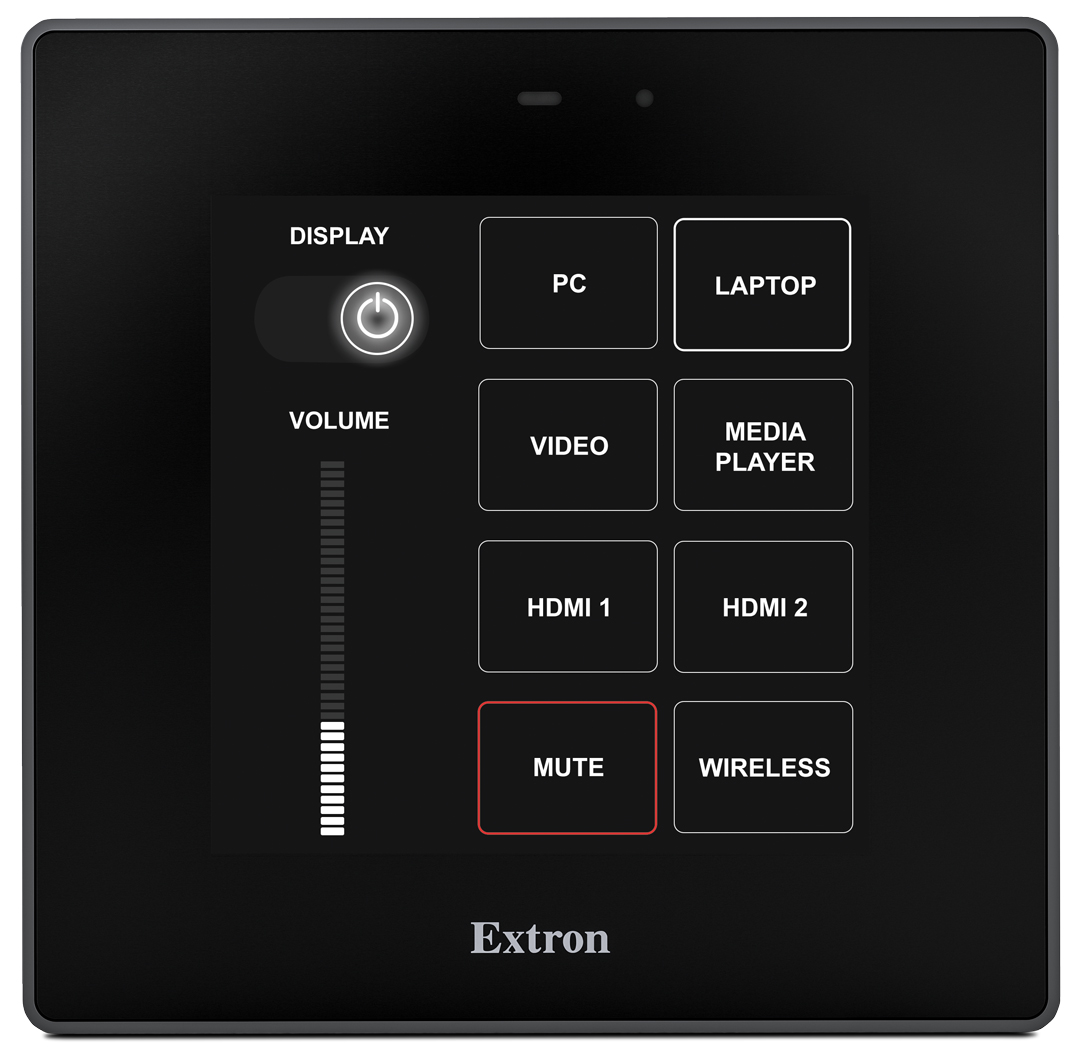

MLC PLUS 400

Familiar MediaLink Controls with a Modern Touch

The MLC Plus 400 is an easy to deploy, all-in-one control system featuring an elegant 4” color touchscreen. As with all of our MediaLink Plus controllers, it combines a familiar user interface with a powerful control processor in one compact product. Intuitive button layout templates available within Global Configurator are designed to support common AV functions like display power, source selection, and volume control.

The provided pre-defined templates aid with setup and configuration by eliminating the need to create custom GUIs or workflows from scratch. With the new MLC Plus 400, you can quickly and effortlessly create clean, easy-to-read AV control interfaces which are ideal for classrooms, boardrooms, or any environment that would benefit from an all-in-one, compact Ethernet controller with an elegant, upscale color touch surface.

Contemporary MediaLink Design That Can be Installed in Any Space

The MLC Plus 400 adds an elegant point of control to any environment. Its compact, unobtrusive form factor lets you add stylish and powerful control features to your workspace while maintaining the integrity of your décor. Flexible mounting options allows installation virtually anywhere, so you can add a contemporary Ethernet controller to walls, lecterns, or tables.

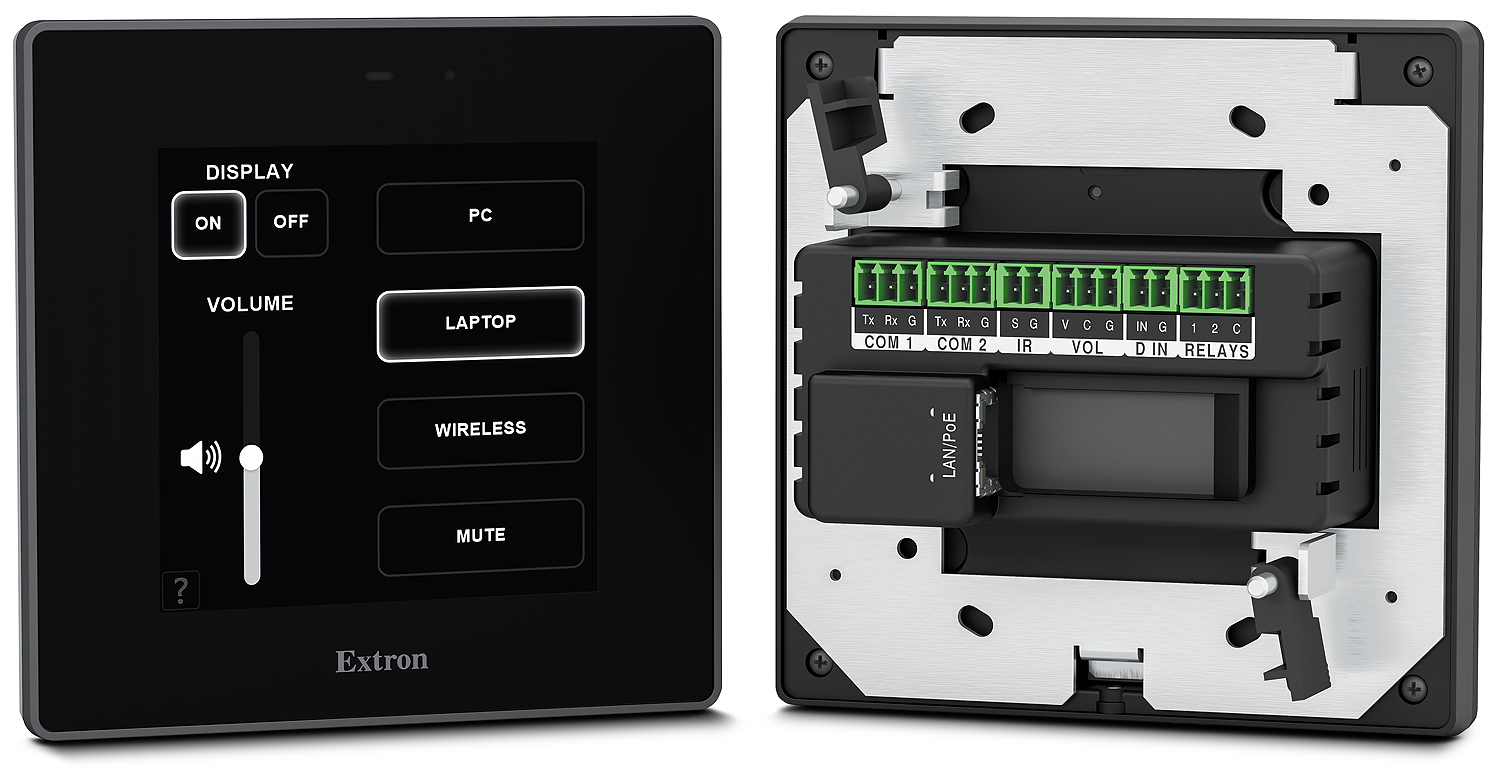

The compact and unobtrusive use of the MLC Plus 400.

Tough, Scratch and Smudge-Resistant Touchscreen

We’ve used Corning® Gorilla Glass in our TouchLink Pro touchpanels for years. Now, with our MLC Plus 400, we provide the same, edge-to-edge touchscreen technology that is more scratch-resistant than standard glass, while maintaining touch sensitivity and vibrancy.

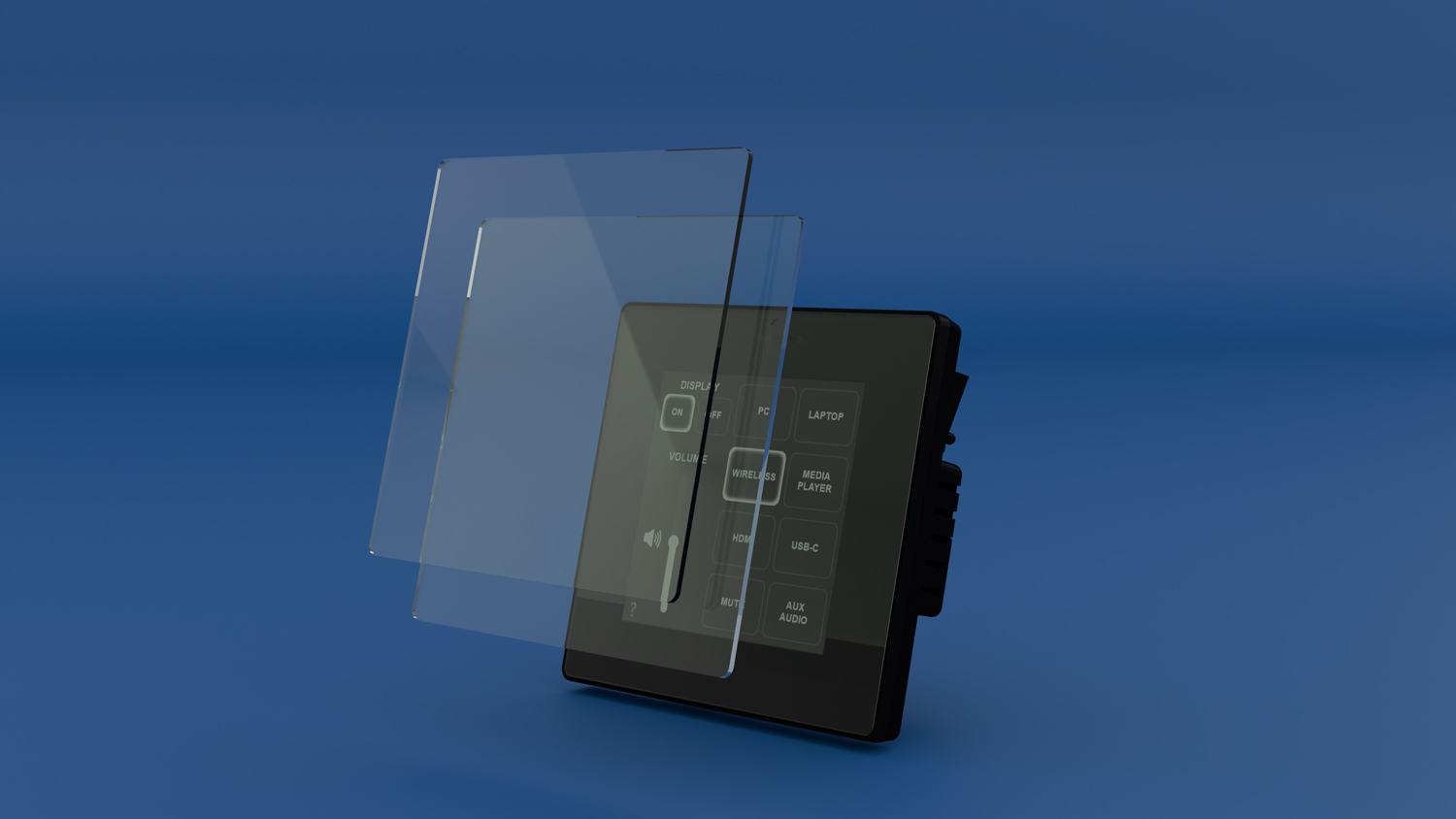

TLP Pro 300M with two layers of transparent glass

Energy-Saving Technology

All Extron products are designed with energy efficiency in mind. This helps them run cool and quiet while increasing their lifespan. The MLC Plus 400 has an adjustable sleep timer that puts the controller into sleep mode after a designated amount of time and a motion detector that wakes it when lights or motion is detected.

Recycling symbol

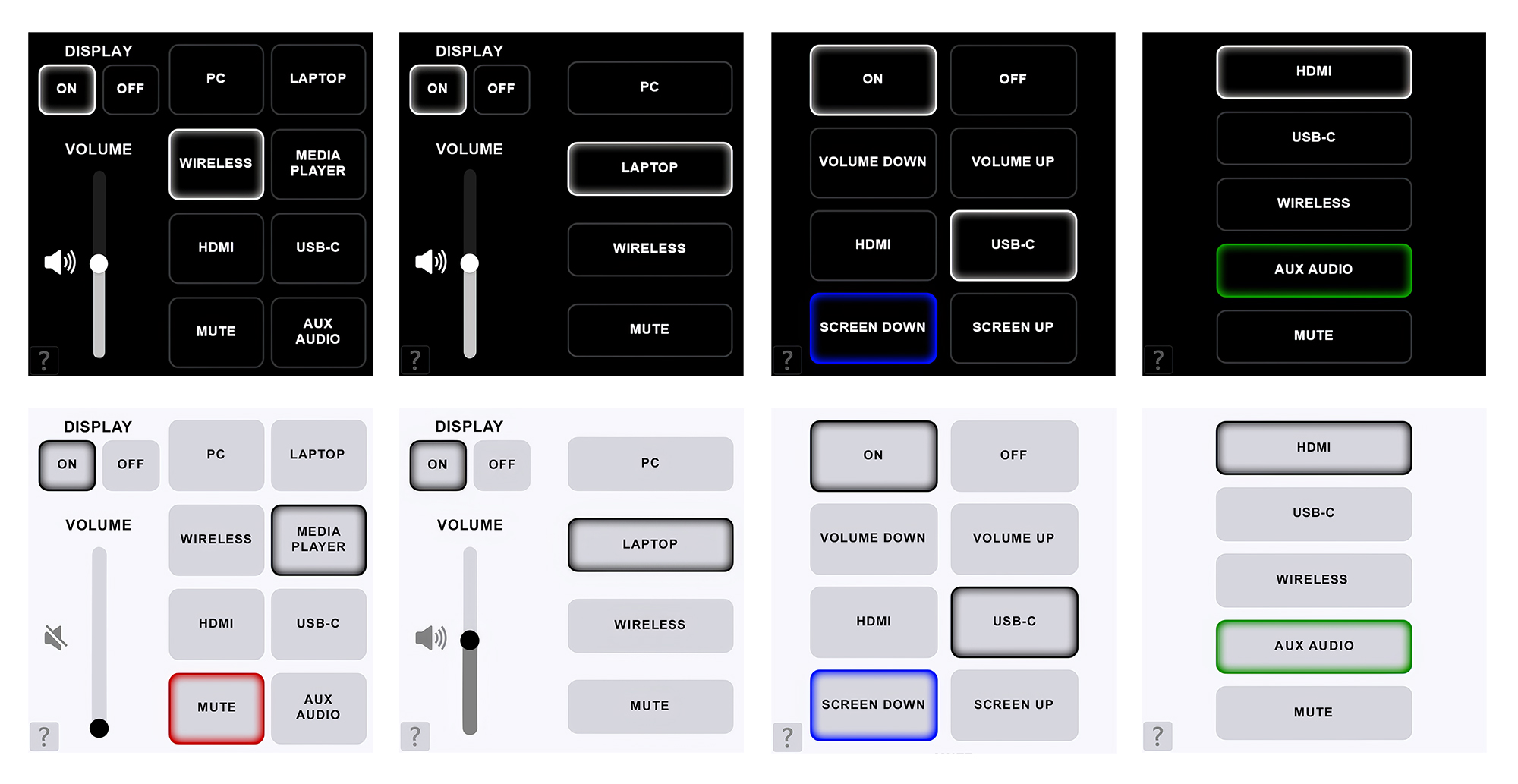

Preconfigured Button Layouts

The MLC Plus 400 is easily setup using Global Configurator Plus and Global Configurator Professional and offers a choice of four preconfigured button layouts in either dark, or light modes.

MLC Plus 400 Button Layout
MLC Plus 400 Button Layout

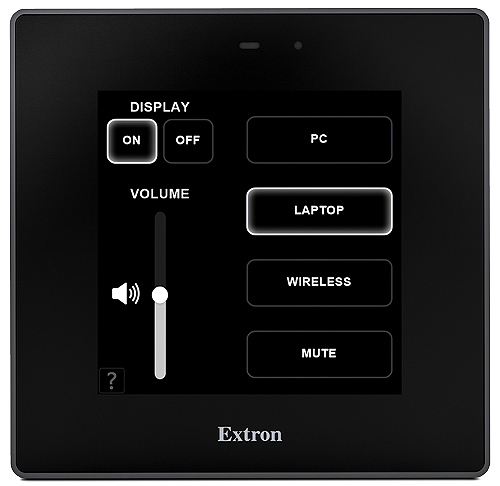

Front view callouts

  • 4” color Gorilla Glass® screen is tough, scratch, and smudge-resistant

  • Software configurable buttons can be set up to control power, volume, and input selection

  • Light sensor adjusts screen brightness as the ambient room lighting changes

  • Motion detector wakes controller as the user approaches

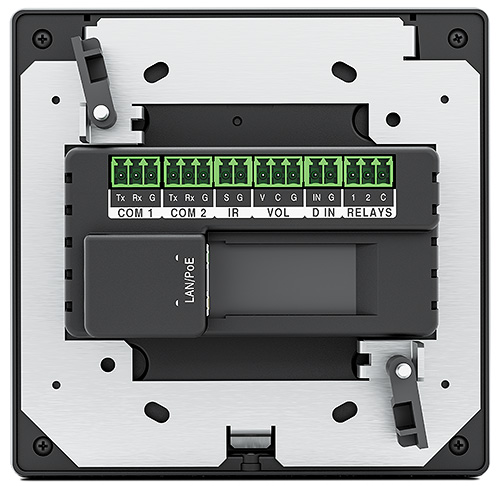

Back view callouts

  • Flexible mounting plate allows for on the wall surface mounting as well as 2-gang mounting

  • Two bidirectional serial ports for control of devices such as displays and switchers

  • IR port for control of source devices such as media players

  • Remote volume control port for volume control of select Extron power amplifiers

  • Digital input port allows for a connection with a variety of devices, such as sensors

  • Two relay ports for control of screens, shades, and other low voltage devices

  • Ethernet port for network connections and control of 3rd party equipment

  • PoE allows the controller to receive power and control over a single Ethernet cable
