SB 33 A
Webcam Compatibility
The SB 33 A Adjustable Width Sound Bar features a webcam slot with a privacy door. A webcam can be installed into the space behind the slot for use in collaboration applications where video conferencing is required. Extron has evaluated popular webcams for proper fit, which are documented below. Check this page when planning to install an SB 33 A since new webcams will be evaluated and added periodically.
Extron Tested Webcams
These webcams have been evaluated for proper fit by Extron engineers.
| Manufacturer | Model | Notes |
|---|---|---|
| Logitech | C930E | - |
| Logitech | C925E | - |
| Logitech |
BRIO
|
The included webcam base must be removed. Refer to Logitech documentation. |
| Microsoft | LifeCam Studio | - |
* Refer to the Setup Guide tab for a webcam installation overview.
Setup Guide
Mounting a Web Camera
The SB 33 A speaker can accommodate a small webcam mounted to the center bracket behind the center cover.
- Install the webcam shelf by attaching it to the center bracket using two screws going through the two vertical slots on the shelf and into two mounting holes in the bracket. There are two pairs of available holes in the bracket. The shelf height can be adjusted by positioning the screws in the shelf slots.
- For cameras that require more overhead clearance, the shelf can be inverted to accommodate taller webcams.
- A screw is inserted in the bottom slot of the shelf to secure the webcam. Note that some cameras may need their base removed.
* Refer to the Compatibility tab for supported cameras.
Downloads
| File Name | Version | Size | Format |
|---|---|---|---|
| SB 33 A Setup Guide | A | 4.9 MB |
* Refer to the Compatibility tab for supported cameras.
Product Information

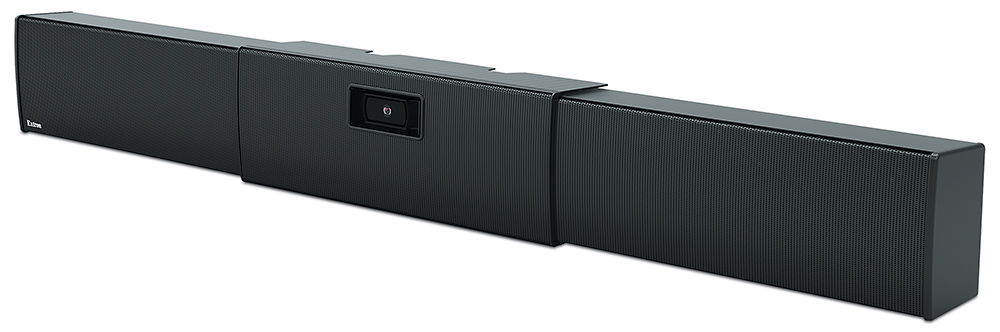

SB 33 A
The SB 33 A blends seamlessly with practically all display sizes. Six models are available to accomodate displays from 46" to 100" diagonal. The SB 33 A features two 3-inch full-range drivers with a tuned bass port and is powered by an Energy Star qualified Extron Class D amplifier. It offers a wide frequency range from 100 Hz to 20 kHz.
