SoundField Pendant Speakers
Designed to Blend In with Contemporary Lighting
Architecturally Discreet to Complement Modern High Ceiling Spaces
Designed to Blend In
Extron design engineers have taken the pendant speaker concept in a new direction. SoundField pendant speakers, with their clean lines and concealed wiring connections, blend into the background alongside contemporary pendant lighting fixtures. This addresses the common requirement that installed speakers be invisible or achitecturally complementary, without requiring modifications to existing structure. Extron's patent pending pendant speaker design is suitable for a wide variety of applications, including convention and exhibit spaces to atriums, restaurants, warehouse, commercial and retail space.
Integrator-Friendly
Extron SoundField pendant speakers come with everything needed for a finished installation, including the Extron exclusive PendantConnect speaker cable. This hybrid design incorporates the speaker wires and steel support cables into a single outer jacket, for a clean installation with only a single visible cable.
Voicing Consistency
To ensure smooth sonic transitions in mixed ceiling applications where the listener moves between drop ceiling and open ceiling areas, the SoundField pendant speakers are voiced consistently with corresponding SoundField ceiling speakers. This reduces guesswork and simplifies speaker selection when designing AV systems for mixed ceiling applications.
The SF 3PT and SF 26PT are voiced consistently with the SF 3CT LP and SF 26CT Series respectively. The SF 28PT is voiced consistently with the SF 228T Plus.
Features

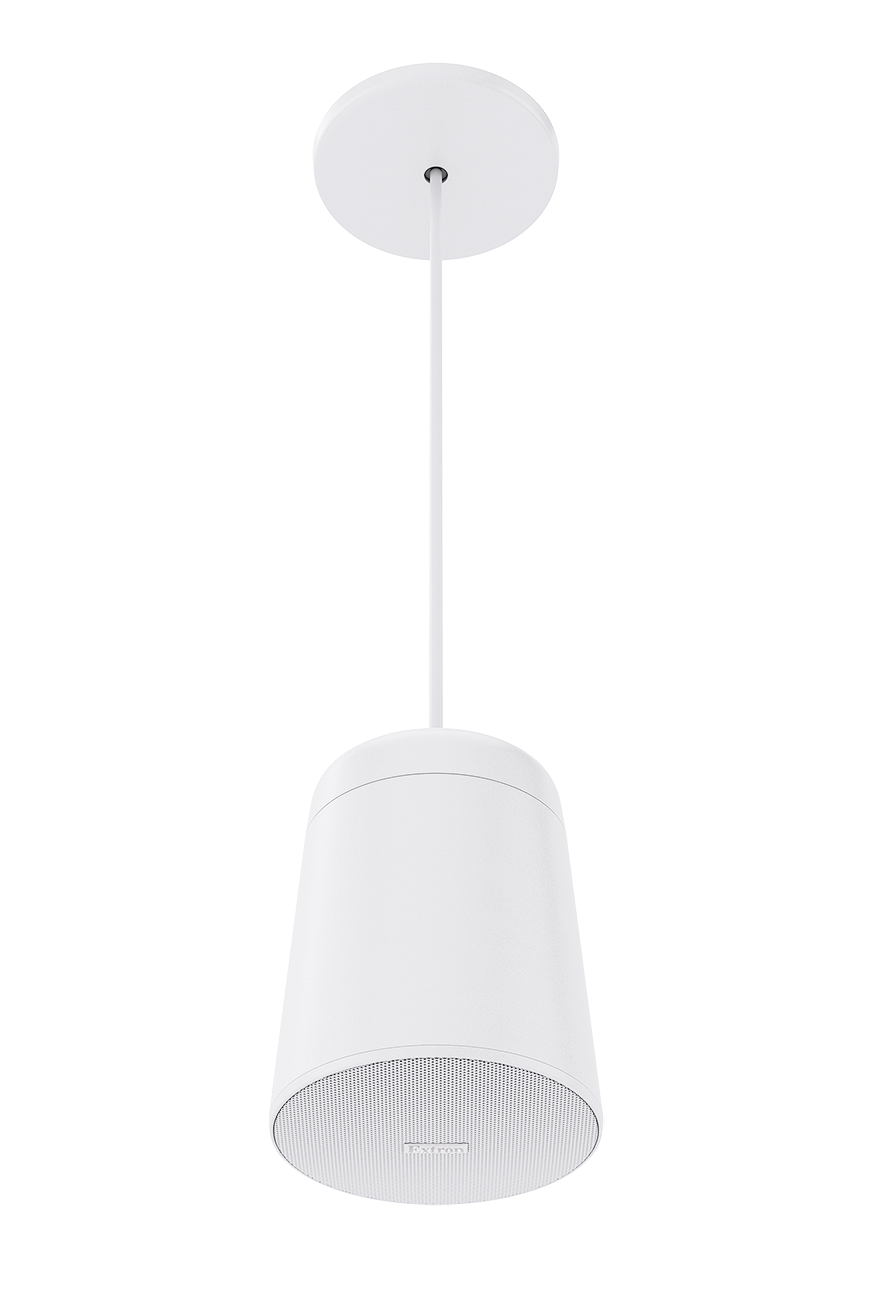

SF 3PT
-
Included Cover Plate
Compression fitting, splicing connectors, and steel cable guide secure the PendantConnect speaker cable to the Ceiling Bracket concealed above
-
PendantConnect Speaker Cable
20’ of PCC-1 speaker cable included per pair
-
Visually Discreet
Tap selection and tie-off points located under the speaker cap
-
Fully Paintable
Available in black or white and is paintable with removable grilles
-
8 ohm direct or 70/100 volt operation
70 volt: 16, 8, 4, 2, and 1 watt selectable
100 volt: 16, 8, 4, and 2 watt selectable -
3" (76 mm) full-range driver
Designed for speech reinforcement and music playback
-
Frequency range: 110 Hz to 20 kHz
A wide and smooth frequency range with reduced beaming for excellent voice clarity
-
Power handling for music reproduction
16 watts continuous pink noise
32 watts continuous program

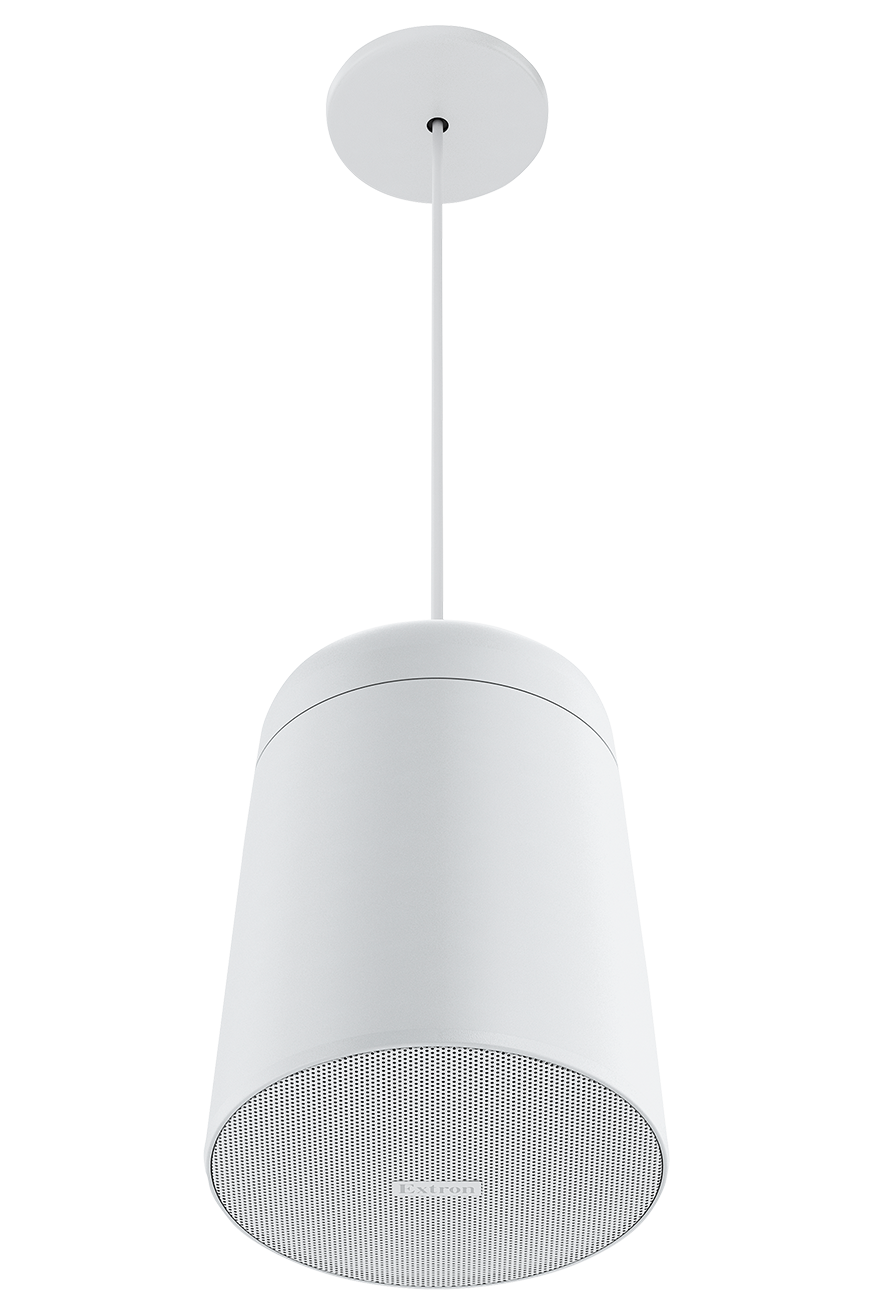

SF 26PT
-
Optional Ceiling Surface Mount
Terminated speaker wires and support cables are secured to structure under an optional Ceiling Surface Mount
-

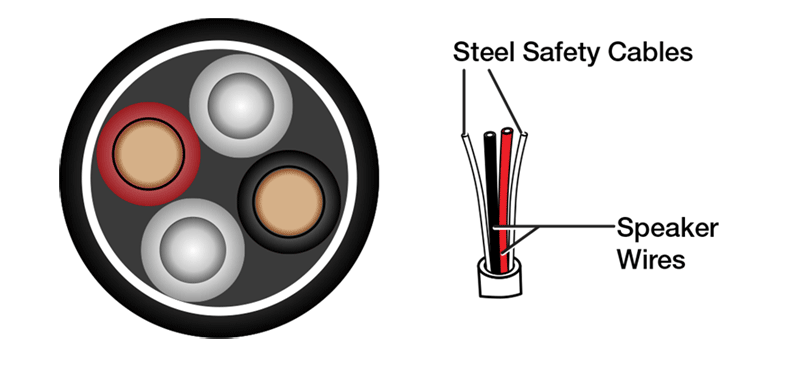

PendantConnect Speaker Cable
30’ of PCC-2 speaker cable included per pair
-
Visually Discreet
Tie-off points are located under the speaker cap and tap selection is under the grille
-
Fully Paintable
Available in black or white and is paintable with removable grilles
-
8 ohm direct or 70/100 volt operation
70 volt: 64, 32, 16, 8 watt selectable
100 volt: 64, 32 and 16 watt selectable -
Two-Way Speaker
6.5" (165 mm) long throw woofer
3/4" (19 mm) ferrofluid-cooled dome tweeter -
Frequency range: 70 Hz to 20 kHz
Exceptional audio quality for applications where premium sonic performance is required
-
High Power Handling
65 watts continuous pink noise
130 watts continuous program

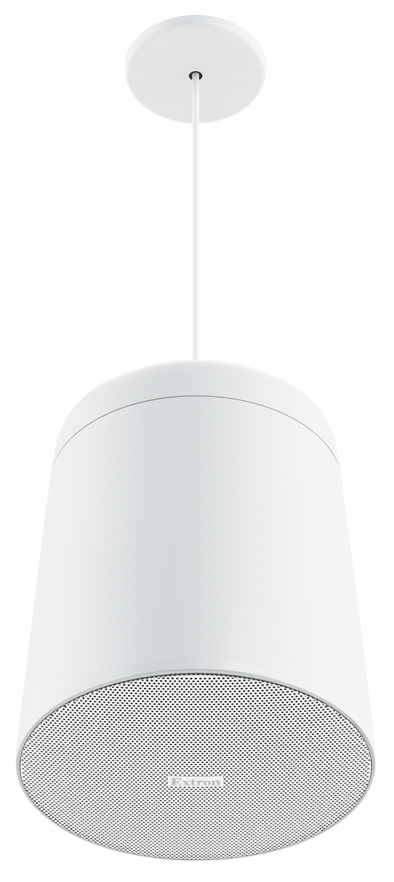

SF 28PT
-
Optional Ceiling Surface Mount
Terminated speaker wires and support cables are secured to structure under an optional Ceiling Surface Mount
-
PendantConnect Speaker Cable
30’ of PCC-2 speaker cable included per pair
-
Visually Discreet
Tie-off points are located under the speaker cap and tap selection is under the grille
-
Fully Paintable
Available in black or white and is paintable with removable grilles
-
8 ohm direct or 70/100 volt operation
70 volt: 64, 32, 16, 8 watt selectable
100 volt: 64, 32 and 16 watt selectable -
Two-Way Speaker
8" (203 mm) long throw woofer
1.1" (28 mm) silk dome tweeter -
Frequency range: 58 Hz to 22 kHz
High performance audio quality for the most critical applications
-
High Impact Power Handling
90 watts continuous pink noise
180 watts continuous program
Pendant Connect Speaker Cable
The Extron exclusive PendantConnect speaker cable simplifies the installation process by eliminating the need for a separate safety cable, which also eliminates the visual clutter caused by separate speaker and safety cables. PendantConnect speaker cable achieves this by bundling the speaker conductors along with steel support and safety cables into a single harness surrounded by a jacket that is color matched to the speaker.

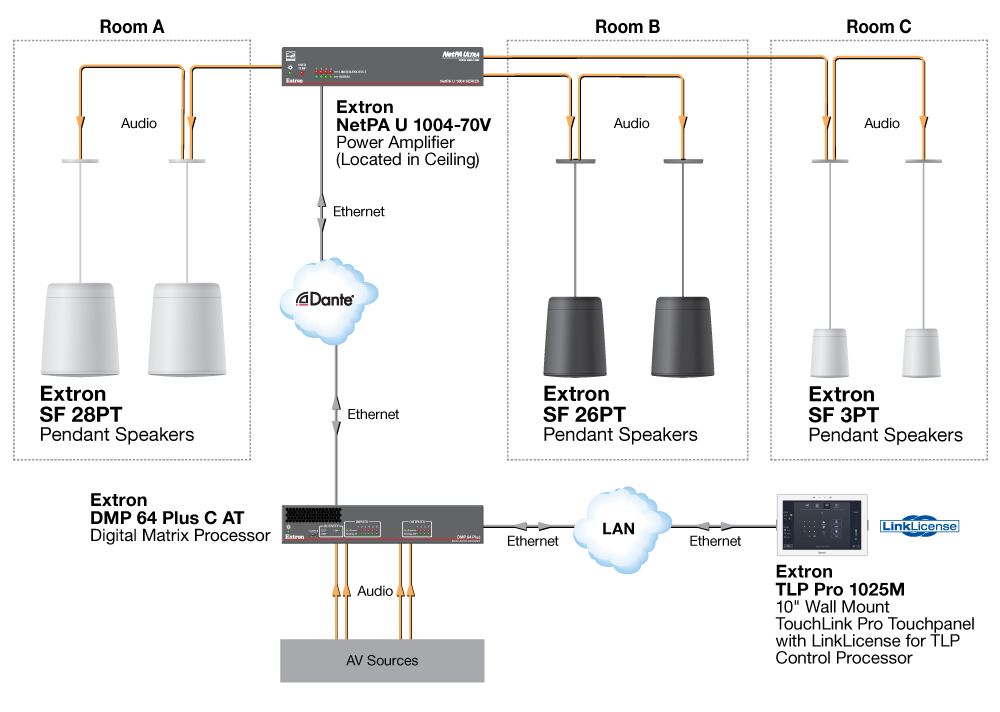

Application Diagram
This multiroom system example shows the flexibility of the Extron SoundField pendant speaker lineup. Three differently sized rooms have pendant speakers installed appropriate for their room size. A large, main room uses SF 28PT 8” two-way pendant speakers for room filling sound. A medium size room has SF 26PT 6” pendant speakers installed for high performance audio, similar to the larger room. A small room utilizes SF 3PT pendant speakers, where lower SPL is required. All three rooms receive the same audio from a DMP 64 Plus C AT via a NetPA U 1004-70V amplifier on a Dante network.
SoundField Pendant Speaker Models
