One Touch Professional Recording and Streaming

StudioStation

One Touch Recording Solution

Extron's StudioStation® is a quick, simple, and convenient solution for one-touch recording of high-quality video and audio presentations that takes the guesswork out of designing, installing, and programming a studio recording system. With the rise in online learning, flipped classrooms, and lecture capture, educational institutions and corporations are expecting more from their classrooms and presentation spaces. These areas must be dynamic, flexible, and easy to use.

Presenters need to reach people beyond their walls, often in remote locations, with a process as easy as recording a favorite television show. Anyone, of any skill level, can quickly and easily record and stream. To turn the system on, insert a USB stick and press the record button to begin recording.

Simple to Operate

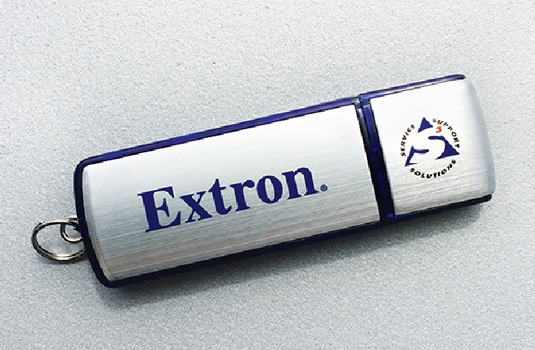

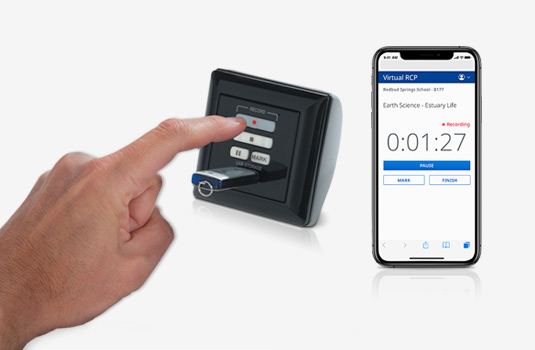

When the user inserts a USB storage device into the remote control panel, the system automatically powers up and is ready for use. Simply press the record button to begin recording. Once the recording is complete, removing the USB storage device places the system into a standby state and turns off any devices connected to the power controller. The core components can be located securely in an equipment rack, with only the control panel and USB connection visible to the user.

Quality Recordings for Any Application

Extron’s high performance scaling and flexible signal processing enable superior recording of nearly all HDMI source resolutions. The default recording setup is configured for 720p at 5 Mbps, producing an MP4 media file, which is compatible with virtually any media player or editing software. Using the embedded web page, it is easy to customize the default configuration to meet the needs of many applications.

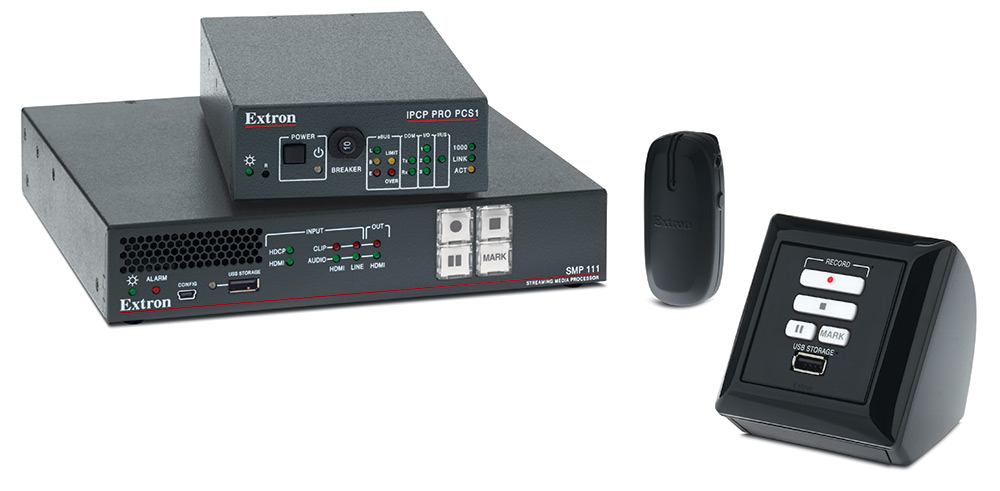

The StudioStation kit includes:

• SMP 111 Streaming Media Processor
• VoiceLift Pro EB Pendant Microphone
• IPCP Pro PCS1 xi Power Controller
• RCP 101 EU Remote Control Panel
• SMB 211 Single Gang Surface Mount Box
• Flex55 101 Mounting Kit
• STP20-2 Plenum Cable
• HDMI Ultra Cable
• Ability to use the vRCP Virtual Remote Control Panel
• Control and automation capabilities via a free GC Plus file

Customization options are available using the online StudioStation Builder.

Key Features

• Recording Studio Kit — Preconfigured system for studio recordings, eliminating the need and expense of designing and programming a studio recording system.
• One touch simple recording and streaming — Automates all functions for a simplified recording studio where a single button press starts recording. Operation is simple and intuitive, with no support staff required.
• Provides high quality video and audio for an improved virtual learning experience
• New Kit includes VoiceLift Pro EB pendant microphone, providing high quality recording of the instructor’s voice
• New Start, pause, and stop recordings using the function buttons on the VoiceLift Pro microphone
• New Automatic communication with IP Link Power Controllers
• New Flexible control – Use a button panel or mobile device to control and automate common functions such as marking a chapter for quick selection

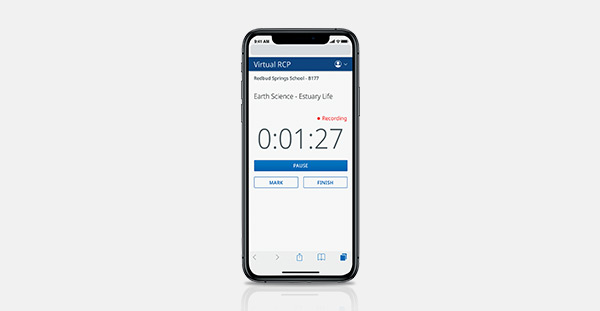

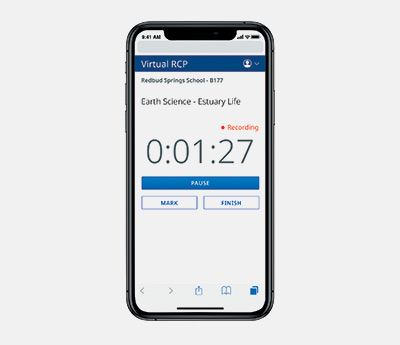

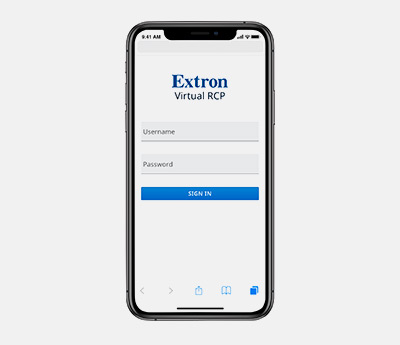

• New vRCP Virtual Remote Control Panel lets you control system functions using the browser on your personal device
• Works with any HDMI camera or video source — Supports any camera, laptop, or mobile device up to 1080p. The input signal is scaled to match the recording resolution.
• Horizontal Video Mirroring — Flips video horizontally to support Light Boards, Learning Glass, or other applications that require reversal of the video image due to the presenter facing the camera while writing.
• Publish to USB drive, network share, or enterprise video platform
• Records MP4 media files that are compatible with virtually any media player — Recordings are compatible with virtually any software media player, computer, or mobile device.
• Power Control for lighting or other devices — Automatically turns on lights and other devices when a USB storage device is connected.
• StudioStation kits can be upgraded with video switching and enhanced control options
