Working Together to Improve Your Meeting Experiences

Extron and Lenovo

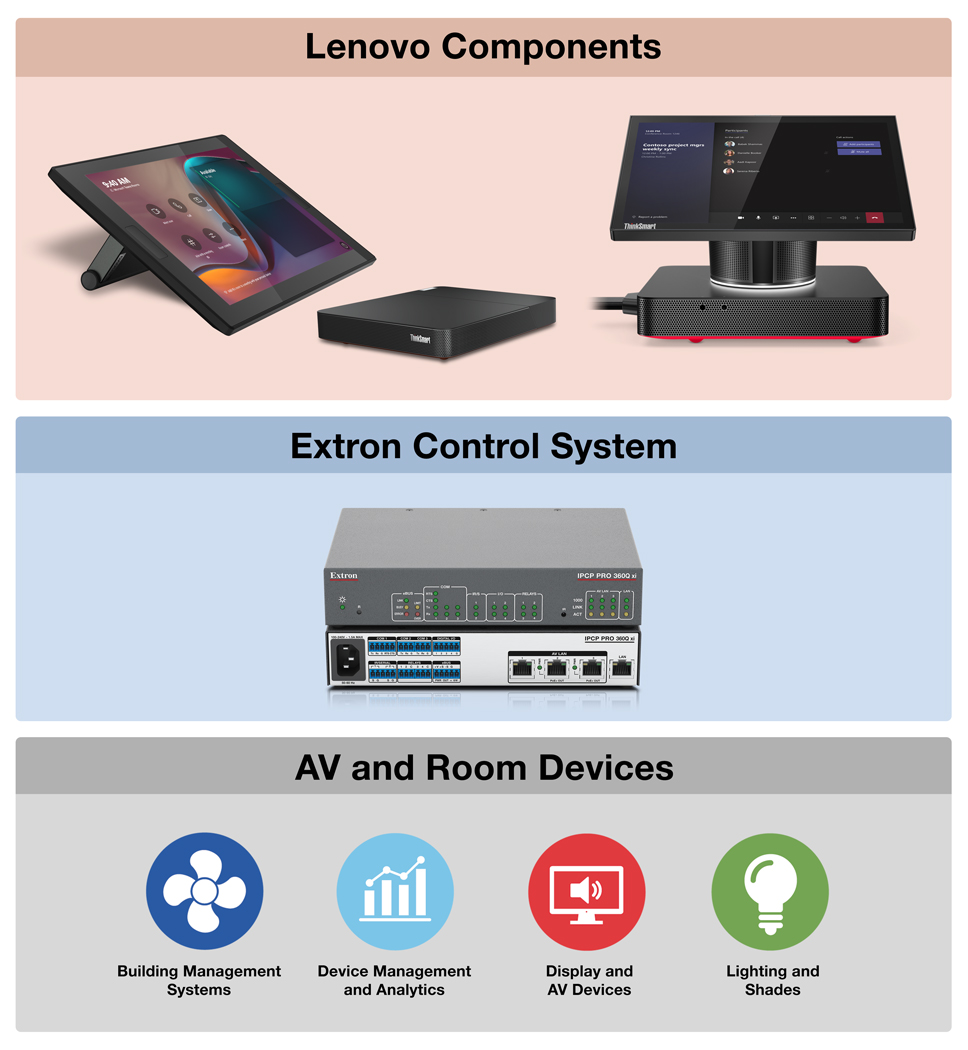

Extron is working with Lenovo to create scalable meeting solutions for modern workspaces. We are integrating room automation, audio, and signal extension capabilities with the Lenovo ThinkSmart, Microsoft Teams Rooms^®, and Zoom Rooms™ solutions. Our partnership with Lenovo brings Extron audiovisual control capabilities to the ThinkSmart Core and ThinkSmart Hub Gen 2, providing complete AV and conferencing control across the enterprise. With this new solution, a simple tap on the Lenovo touchscreen can control call volume for the room as well as send commands that trigger automation events for display control, shades, lighting, and more.

As part of this conferencing, control, and automation ecosystem, occupancy sensors can also be added to automate system power to turn on displays when participants enter a room and turn them off when the room is empty.

Extron Control for Microsoft Teams Rooms

Extron Control for Microsoft Teams Rooms adds Extron Pro Series control capabilities to the full range of conferencing features provided by the Microsoft Teams Rooms application, which runs on Lenovo ThinkSmart collaboration solutions, thus allowing a single device to deliver both collaboration and control solutions for an enhanced meeting room experience. The Extron Control for Microsoft Teams Rooms application shows the secure Extron Control for Web HTML 5 Virtual TouchLink panel (vTLP) page, which can be configured with Extron Global Configurator Plus and Professional (GCP) or programmed with ControlScript. It allows various room functions, including shading, lighting, display, and camera controls.

Key Features

Effortlessly combine Lenovo’s ThinkSmart Core and ThinkSmart Hub Gen 2 with Extron’s powerful AV device control for Zoom Rooms and Microsoft Teams meeting experience.
Integrate room sensors to trigger lighting, shade control, and other devices for no-touch Zoom Rooms or Microsoft Teams meetings.
Maintain a consistent user experience across the enterprise while accommodating the needs of a wider variety of meeting rooms types and technologies.
Supports USB camera control, Extron audio DSP and MediaPort integration, and other unique capabilities.
Audio DSPs, Amplifiers, and Speakers Certified for Microsoft Teams Rooms

Documentation and GUI Files

Global Scripter Template and Release Notes

Microsoft Teams Rooms Global Scripter Template and Release Notes

Drivers

Extron Control for Microsoft Teams Rooms Driver and Communications Sheet

MSI Installer and Release Notes

Extron and Zoom Rooms

Delivering an Enhanced Room Experience

Extron and Zoom have come together to provide powerful Zoom Rooms solutions with our integrated control solutions and certified hardware. Now it's easier than ever to stay connected with the flexibility of real-time collaboration from anywhere. Our certified products include digital signal processors, amplifiers, loudspeakers, along with Zoom Rooms controllers and schedulers. Our Extron and Zoom landing page covers all our solutions, Zoom Rooms Certified Design Solutions, partner solutions, and links to available resources.

Learn More

Lenovo Design Solutions

Learn more

Huddle Room – Microsoft Teams Room with Lenovo Hub Gen 2

Automated Display Control, Sound Reinforcement, Up to Four People

Learn more

Huddle Room – Microsoft Teams Room with Lenovo ThinkSmart Core and Logitech Tap

Automated Display Control, Sound Reinforcement, Up to Four People

Learn more

Meeting Room – Microsoft Teams Room with Lenovo ThinkSmart Core and ThinkSmart Controller

Device Control, Automated Display Control, Sound Reinforcement, Up to Eight People

Learn more

Meeting Room – Microsoft Teams Room with Lenovo Hub Gen 2

Device Control, Automated Display Control, Sound Reinforcement, Up to Eight People

Learn more

Meeting Room – Zoom Rooms with Lenovo Hub Gen 2

Device Control, Automated Display Control, Sound Reinforcement, Up to Eight People

Learn more

Meeting Room – Zoom Rooms with Lenovo ThinkSmart Core and ThinkSmart Controller

Device Control, Automated Display Control, Sound Reinforcement, Up to Eight People

Huddle Room – Microsoft Teams Room with Lenovo Hub Gen 2

SPACE REQUIREMENTS

Huddle rooms with video conferencing capability enable collaboration with team members at different geographical locations. This system uses Lenovo Hub Gen 2 with Microsoft Teams Rooms, taking advantage of the intuitive touch control interface and transforming this workspace into a Microsoft Teams Rooms with one-touch join. A Logitech MeetUp Camera is mounted below the display. AV signals are sent from the Lenovo Hub Gen 2 and Extron HD CTL 100 Workspace Controller together with the OCS 100C to the display, enabling automated display control whenever the room is occupied.

EXTRON EQUIPMENT LIST

HD CTL 100	Workspace Controller	1
OCS 100C	Occupancy Sensor - Ceiling Mount	1

CAPABILITIES

Connect with team members using Microsoft Teams with the Lenovo Hub Gen 2
Extron OCS 100C occupancy sensor enables Extron HD CTL 100 to provide automated control of the display via HDMI-CEC
Switch easily between local presentation or conferencing via the Lenovo Hub Gen 2

Click to view larger

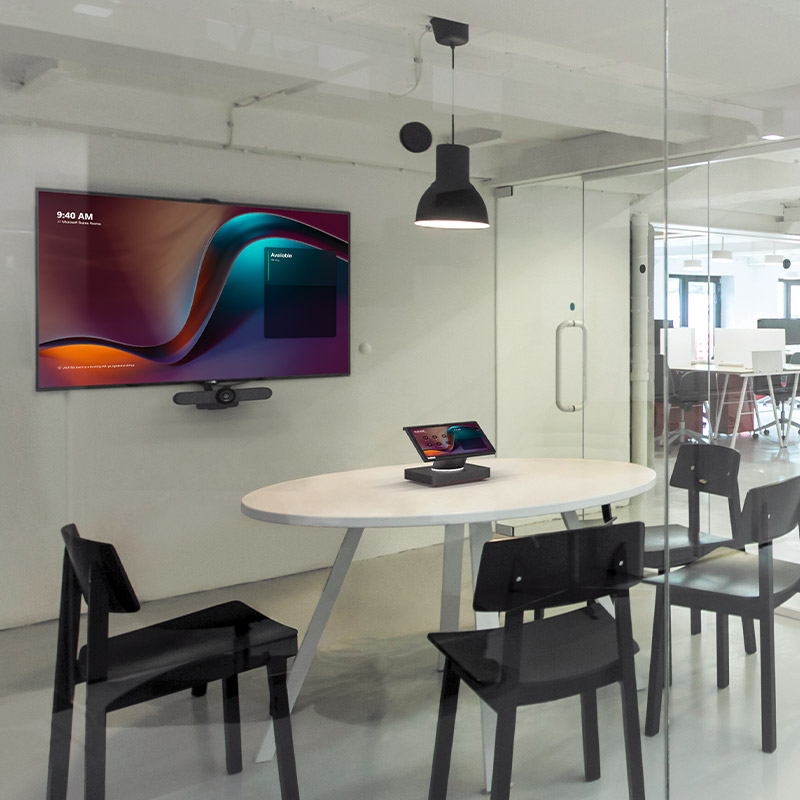

Gallery image of huddle room with Lenovo Hub Gen 2

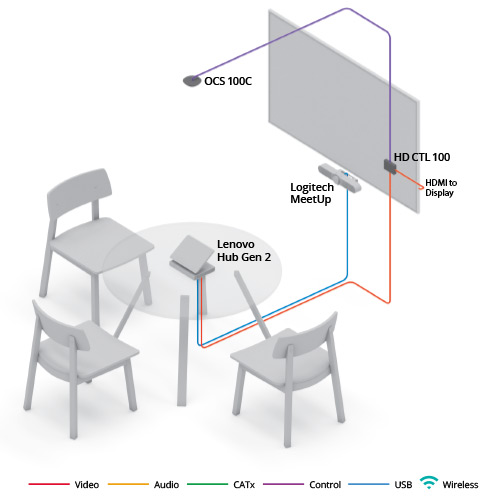

Gallery image of huddle room diagram with Lenovo Hub Gen 2

Huddle Room – Microsoft Teams Room with Lenovo ThinkSmart Core and Logitech Tap

SPACE REQUIREMENTS

Huddle rooms with video conferencing capability enable collaboration with team members at different geographical locations. This system uses Lenovo ThinkSmart Core and Logitech^® Tap with Microsoft Teams Rooms, taking advantage of the intuitive touch control interface and transforming this workspace into a Microsoft Teams Rooms with one-touch join. A Logitech MeetUp Camera is mounted below the display. AV signals are sent from the Lenovo ThinkSmart Core and Extron HD CTL 100 Workspace Controller together with the OCS 100C to the display, enabling automated display control whenever the room is occupied.

EXTRON EQUIPMENT LIST

HD CTL 100	Workspace Controller	1
OCS 100C	Occupancy Sensor - Ceiling Mount	1

CAPABILITIES

Connect with team members using Microsoft Teams with the Lenovo ThinkSmart Core and Logitech Tap
Extron OCS 100C occupancy sensor enables Extron HD CTL 100 to provide automated control of the display via HDMI-CEC
Switch easily between local presentation or conferencing via the Logitech Tap

Click to view larger

Gallery image of huddle room with Lenovo ThinkSmart Core and Logitech Tap

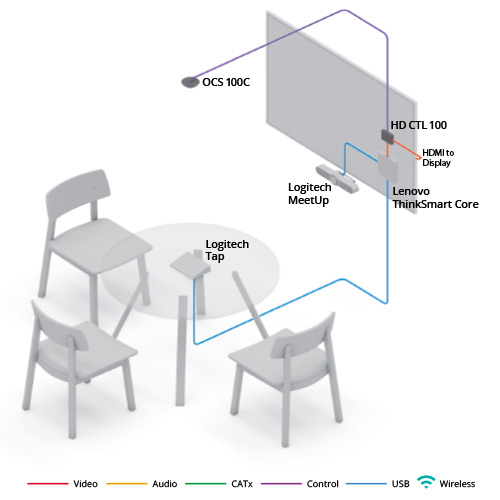

Gallery image of huddle room diagram with Lenovo ThinkSmart Core and Logitech Tap

Meeting Room – Microsoft Teams Room with Lenovo ThinkSmart Core and ThinkSmart Controller

SPACE REQUIREMENTS

Meeting rooms with video conferencing capability enable internal collaboration with remote team members at different geographical locations. This system utilizes the Lenovo ThinkSmart Core and ThinkSmart Controller, enabling meeting attendees to use the full range of Microsoft^® Teams Rooms System conferencing features while having access to AV control from the same interface. A Logitech MeetUp Camera is mounted below the display. Control signals are sent from the Lenovo ThinkSmart Core and ThinkSmart Controller through an Extron IPCP Pro 350 Control Processor to automate lighting, shades and display.

EXTRON EQUIPMENT LIST

OCS 100C	Occupancy Sensor - Ceiling Mount	1
IPCP Pro 350	IP LinkPro Control Processor with LinkLicense for User Interfaces	1

CAPABILITIES

Supports convenient connection of HDMI-equipped devices via the ThinkSmart Controller
Connect with team members using Microsoft Teams with the Lenovo ThinkSmart Core and ThinkSmart Controller
LinkLicense enables the Lenovo ThinkSmart Core and ThinkSmart Controller to provide granular control of lighting and shades as well source selection through Extron Control for Microsoft Teams Rooms
Extron OCS 100C occupancy sensor enables Extron IPCP Pro 350 to automatically start the system along with providing control of the display via RS-232
Switch easily between local presentation or conferencing via the Logitech Tap
Easy integration with Extron GlobalViewer Enterprise for complete AV resource management

Click to view larger

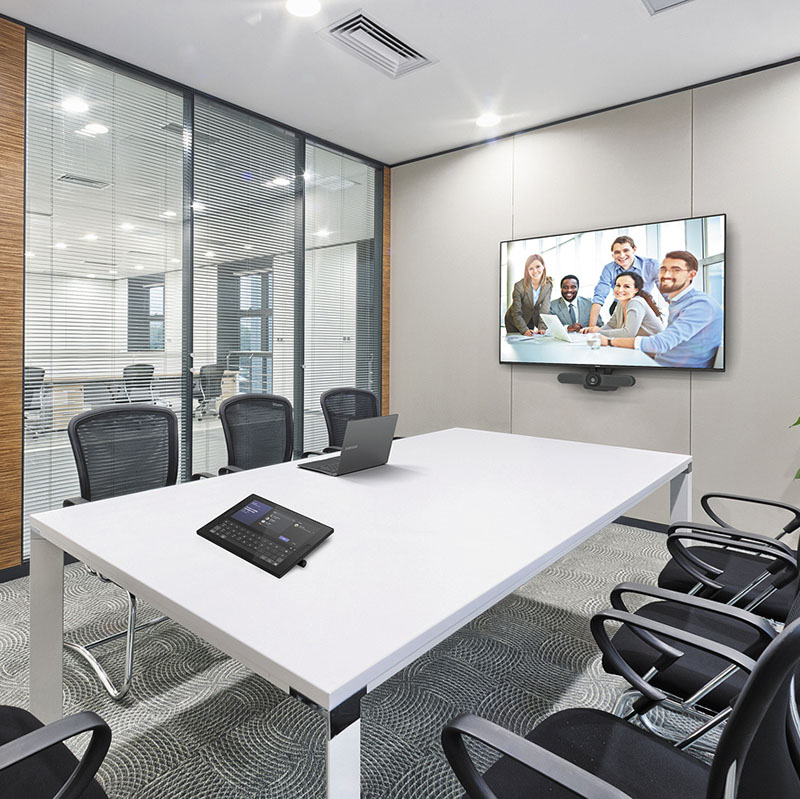

Gallery image of meeting room using Microsoft Teams Room with Lenovo ThinkSmart Core and Logitech Tap

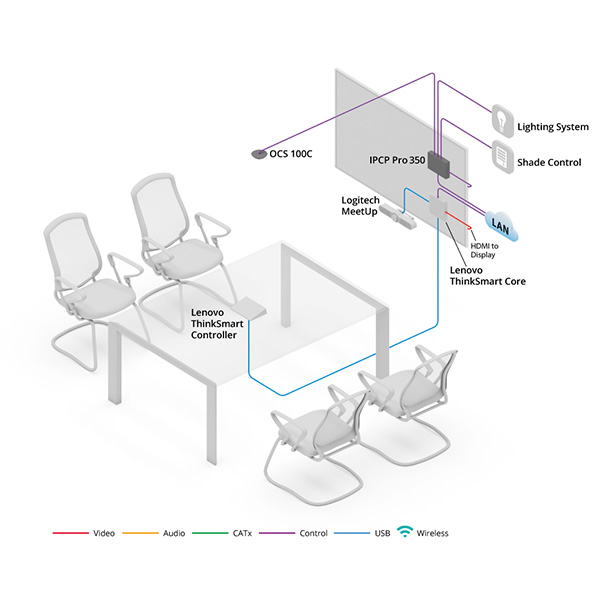

Gallery image of meeting room diagram using Microsoft Teams Room, Lenovo ThinkSmart Core, and Logitech Tap

Meeting Room – Microsoft Teams Room with Lenovo Hub Gen 2

SPACE REQUIREMENTS

Meeting rooms with video conferencing capability enable internal collaboration with remote team members at different geographical locations. This system utilizes the Lenovo Hub Gen 2, enabling meeting attendees to use the full range of Microsoft^® Teams Rooms System conferencing features while having access to AV control from the same interface. A Logitech MeetUp Camera is mounted below the display. Control signals are sent from the Lenovo Hub Gen 2 through an Extron IPCP Pro 350 Control Processor to automate lighting, shades and display.

EXTRON EQUIPMENT LIST

OCS 100C	Occupancy Sensor - Ceiling Mount	1
IPCP Pro 350	IP Link Pro Control Processor with LinkLicense for User Interfaces	1

CAPABILITIES

Supports convenient connection of HDMI-equipped devices via the Lenovo Hub Gen 2
Connect with team members using Microsoft Teams Rooms with the Lenovo Hub Gen 2
LinkLicense enables the Lenovo Hub Gen 2 to provide granular control of lighting and shades as well source selection through Extron Control for Microsoft Teams Rooms
Extron OCS 100C occupancy sensor enables Extron IPCP Pro 350 to automatically start the system along with providing control of the display via RS-232
Switch easily between local presentation or conferencing via the Lenovo Hub Gen 2
Easy integration with Extron GlobalViewer Enterprise for complete AV resource management

Click to view larger

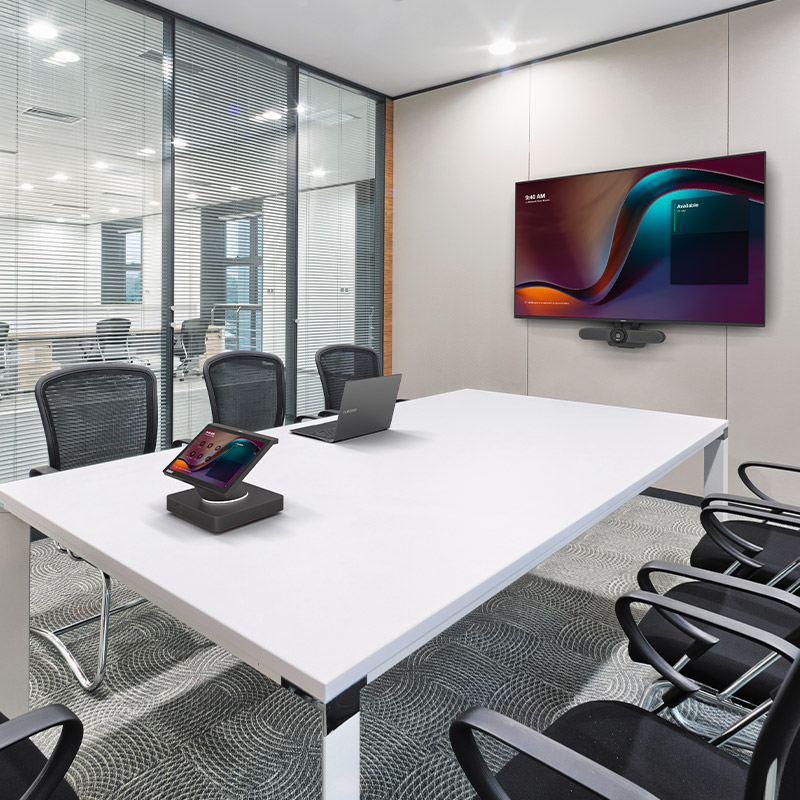

Gallery image of meeting room using Microsoft Teams Room with Lenovo Hub Gen 2

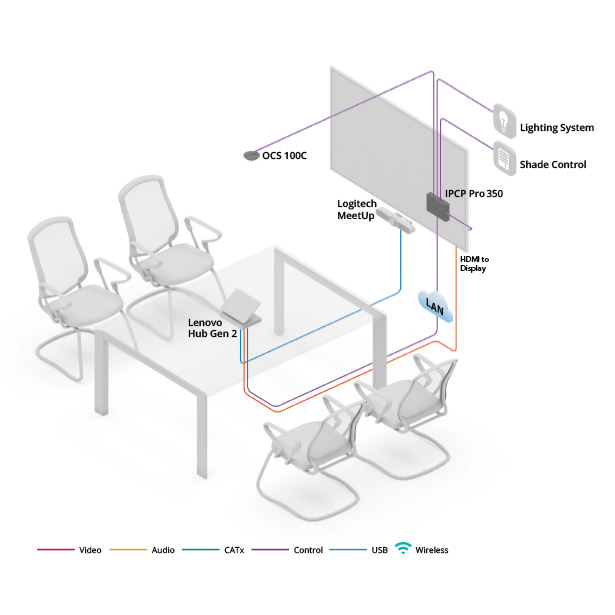

Gallery image of meeting room diagram using Microsoft Teams Room with Lenovo Hub Gen 2

Meeting Room – Zoom Rooms with Lenovo Hub Gen 2

SPACE REQUIREMENTS

Meeting rooms with video conferencing capability enable internal collaboration with remote team members at different geographical locations. This system utilizes the Lenovo Hub Gen 2, enabling meeting attendees to use the full range of Zoom Rooms System conferencing features while having access to AV control from the same interface. A Logitech MeetUp Camera is mounted below the display. Control signals are sent from the Lenovo Hub Gen 2 through an Extron IPCP Pro 350 Control Processor to automate lighting, shades and display.

EXTRON EQUIPMENT LIST

OCS 100C	Occupancy Sensor - Ceiling Mount	1
IPCP Pro 350	IP Link Pro Control Processor*	1
*LinkLicense for User Interfaces is not required

CAPABILITIES

Supports convenient connection of HDMI-equipped devices via the Lenovo Hub Gen 2
Connect with team members using Zoom Rooms with the Lenovo Hub Gen 2
Source selection and Room Control is available through Zoom Rooms Native Room Controls available on the Lenovo Hub Gen 2
Extron OCS 100C occupancy sensor enables Extron IPCP Pro 350 to automatically start the system along with providing control of the display via RS-232
Switch easily between local presentation or conferencing via the Lenovo Hub Gen 2
Easy integration with Extron GlobalViewer Enterprise for complete AV resource management

Click to view larger

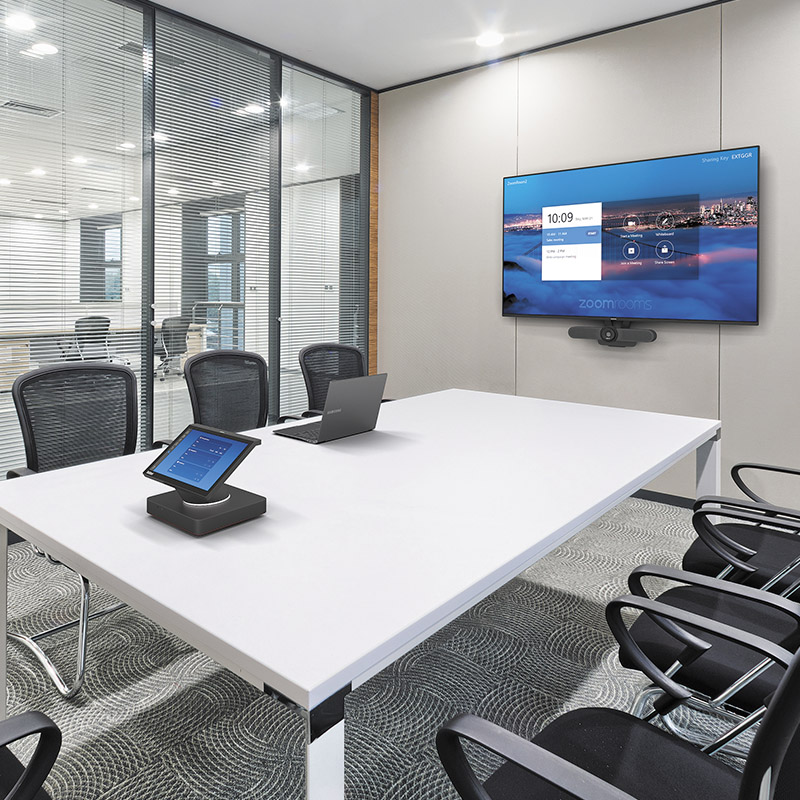

Gallery image of meeting room using Zoom Rooms with Lenovo Hub Gen 2

Gallery image of meeting room diagram using Zoom Rooms with Lenovo Hub Gen 2

Meeting Room – Zoom Rooms with Lenovo ThinkSmart Core and ThinkSmart Controller

SPACE REQUIREMENTS

Meeting rooms with video conferencing capability enable internal collaboration with remote team members at different geographical locations. This system utilizes the Lenovo ThinkSmart Core and ThinkSmart Controller, enabling meeting attendees to use the full range of Zoom Rooms System conferencing features while having access to AV control from the same interface. A Logitech MeetUp Camera is mounted below the display. Control signals are sent from the Lenovo ThinkSmart Core and ThinkSmart Controller through an Extron IPCP Pro 350 Control Processor to automate lighting, shades and display.

EXTRON EQUIPMENT LIST

OCS 100C	Occupancy Sensor - Ceiling Mount	1
IPCP Pro 350	IP Link Pro Control Processor*	1
*LinkLicense for User Interfaces is not required

CAPABILITIES

Supports convenient connection of HDMI-equipped devices via the ThinkSmart Controller
Connect with team members using Zoom Rooms with the Lenovo ThinkSmart Core and ThinkSmart Controller
Source selection and Room Control is available through Zoom Rooms Native Room Controls available on the Lenovo ThinkSmart Core and ThinkSmart Controller
Extron OCS 100C occupancy sensor enables Extron IPCP Pro 350 to automatically start the system along with providing control of the display via RS-232
Switch easily between local presentation or conferencing via the Logitech Tap
Easy integration with Extron GlobalViewer Enterprise for complete AV resource management
