Extron Delivers an Enhanced Room Experience for Microsoft Teams Rooms

Extron and Microsoft have come together to provide Microsoft Teams Rooms solutions with our certified hardware. Now it's easier than ever to stay connected with flexibility of realtime collaboration from anywhere. The products in our Microsoft Teams Rooms Certified Design Solutions have been designed and meticulously tested for best in class performance and ease of use.

On this page, you will find complete Certified designs, Featured solutions, and detailed information on the individual products they include. These designs and solutions can be deployed in any size environment, and in any application from enterprise to education to remote work.

Certified for Microsoft Teams Rooms Design Solutions

Learn more

Medium Conference Room

Up to 10 People

Learn more

Large Conference Room

Up to 15 People

Learn more

Extra Large Conference Room

Up to 18+ People

Learn more

Classroom or Training Room

Up to 18+ People

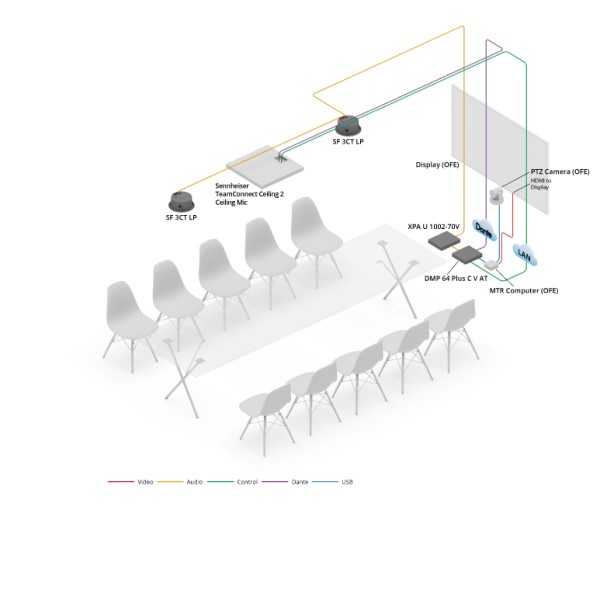

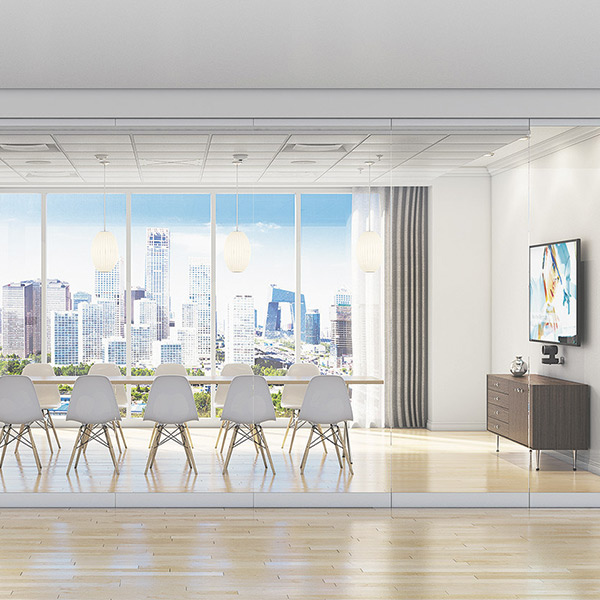

Medium Conference Room

Space requirements

Medium conference room accommodates up to ten people and includes Microsoft Teams Rooms conferencing capabilities, enabling participants in remote locations to join meetings. This system includes a single display, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The SF 3CT ceiling speakers deliver consistent sound levels across the entire meeting area.

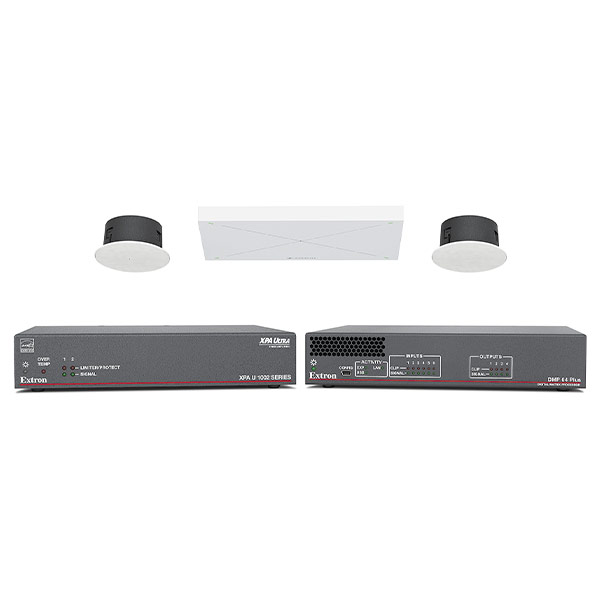

Extron equipment list

DMP 64 Plus C V AT	6×4 Digital Matrix Processor w/ AEC, VoIP, & Dante	1
XPA U 1002-70V	Two Channel Amplifier, 100 watts at 70 volts	1
SF 3CT LP	3" Full-Range Ceiling Speakers, 70/100V, Pair	1
SPK16P/1000	16 AWG Plenum Speaker Cable - 75' (22.8 m)	1
USB CFG Cable	USB A Male to USB Mini B Male 6' (1.8 m)	1
Audio Cable	Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m)	1
Network Cable	Cat-6 Plenum network cable - 35' (10.7 m)	2
Network Cable	Cat-6 Non-Plenum network cable - 6' (1.8 m)	1

Sennheiser equipment list

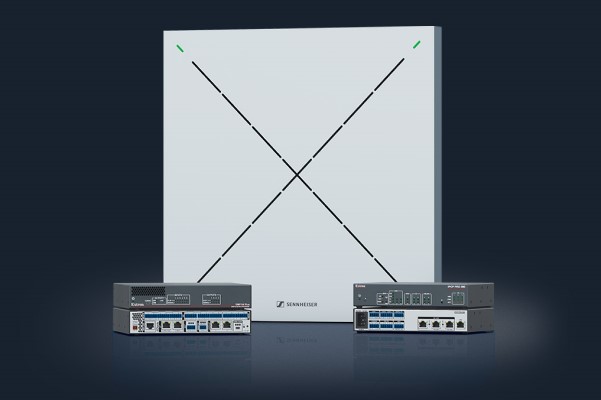

TeamConnect Ceiling 2	Beamforming Ceiling Microphone array	1
SL CM EB US	2' x 2' Flush-mounted Kit	1

Network Switch

Network Switch	10 port PoE network switch	1

Additional Required Equipment

MTR Computer	Microsoft Teams Rooms Computer with Camera and Control interface	1

Capabilities

Connect the room with a Microsoft Teams Rooms meeting
Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
Enterprise level routing flexibility and device compatibility with Dante AoIP
Clear audio playback

Downloads

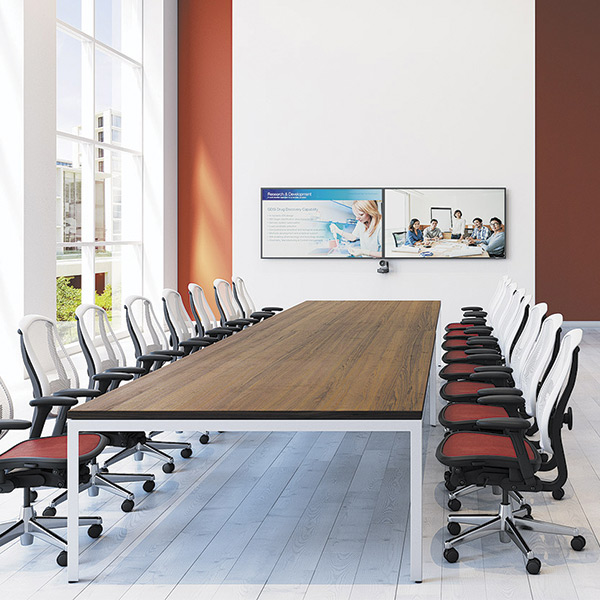

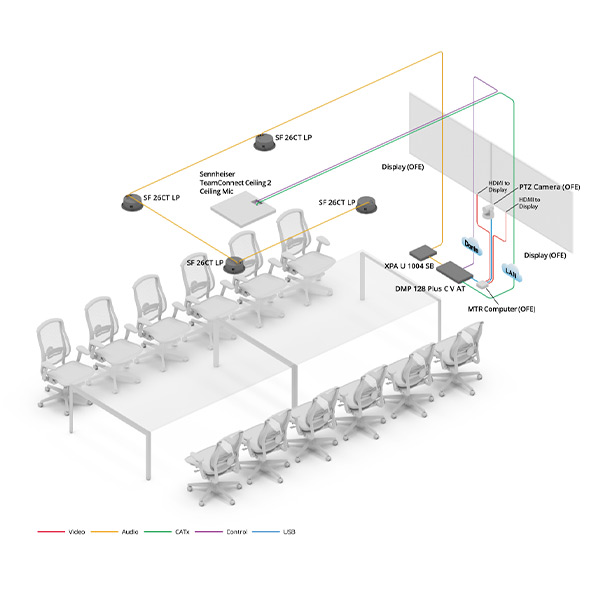

Large Conference Room

Space requirements

Large conference room accommodates up to 15 people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.

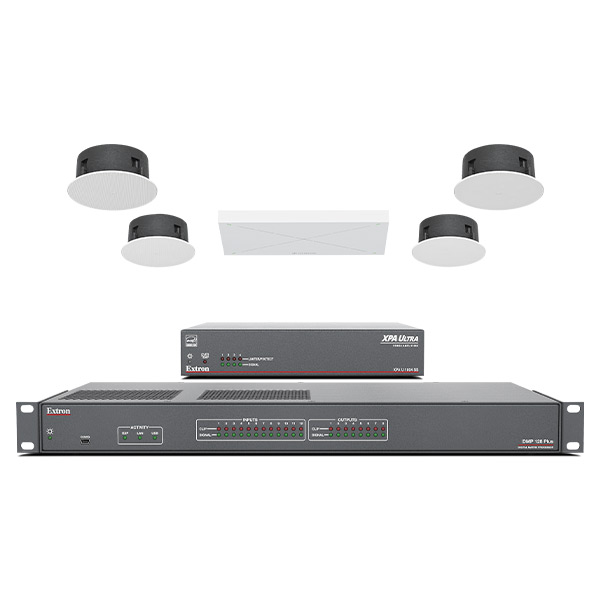

Extron equipment list

DMP 128 Plus C V AT	12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante	1
XPA U 1004 SB	Four Channel Bridgeable Output Amplifier	1
SF 26CT LP	6.5" Two-Way Ceiling Speakers, 70/100V, Pair	2
SPK14P/1000	14 AWG Plenum Speaker Cable - 150' (45.7 m)	1
USB CFG Cable	USB A Male to USB Mini B Male 6' (1.8 m)	1
Audio Cable	Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m)	1
Network Cable	Cat-6 Plenum network cable - 50' (15.2 m)	2
Network Cable	Cat-6 Non-Plenum network cable - 6' (1.8 m)	1

Sennheiser equipment list

TeamConnect Ceiling 2	Beamforming Ceiling Microphone array	1
SL CM EB US	2' x 2' Flush-mounted Kit	1

Network Switch

Network Switch	10 port PoE network switch	1

Additional Required Equipment

MTR Computer	Microsoft Teams Rooms Computer with Camera and Control interface	1

Capabilities

Connect the room with a Microsoft Teams Rooms meeting
Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
Enterprise level routing flexibility and device compatibility with Dante AoIP
Clear audio playback

Downloads

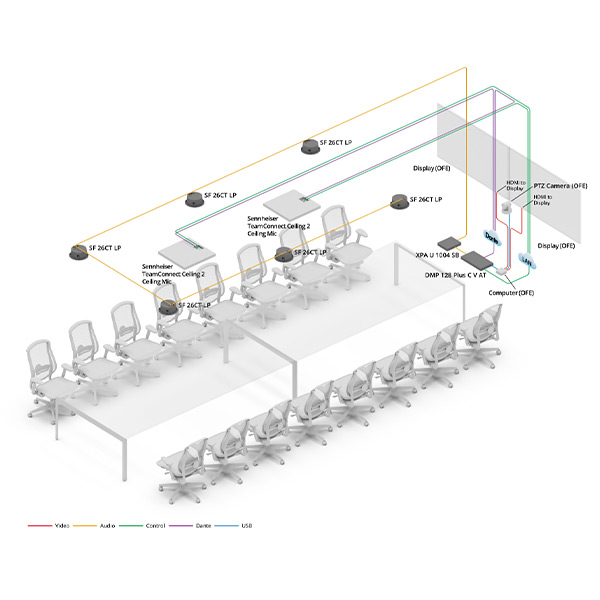

Extra Large Conference Room

Space requirements

Extra Large conference room accommodates up to 18+ people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.

Extron equipment list

DMP 128 Plus C V AT	12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante	1
XPA U 1004 SB	Four Channel Bridgeable Output Amplifier	1
SF 26CT LP	6.5" Two-Way Ceiling Speakers, 70/100V, Pair	3
SPK14P/1000	14 AWG Plenum Speaker Cable - 150' (45.7 m)	1
USB CFG Cable	USB A Male to USB Mini B Male 6' (1.8 m)	1
Audio Cable	Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m)	1
Network Cable	Cat-6 Plenum network cable - 50' (15.2 m)	2
Network Cable	Cat-6 Plenum network cable - 35' (10.7 m)	2
Network Cable	Cat-6 Non-Plenum network cable - 6' (1.8 m)	1

Sennheiser equipment list

TeamConnect Ceiling 2	Beamforming Ceiling Microphone array	2
SL CM EB US	2' x 2' Flush-mounted Kit	2

Network Switch

Network Switch	10 port PoE network switch	1

Additional Required Equipment

MTR Computer	Microsoft Teams Rooms Computer with Camera and Control interface	1

Capabilities

Connect the room with a Microsoft Teams Rooms meeting
Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
Enterprise level routing flexibility and device compatibility with Dante AoIP
Clear audio playback

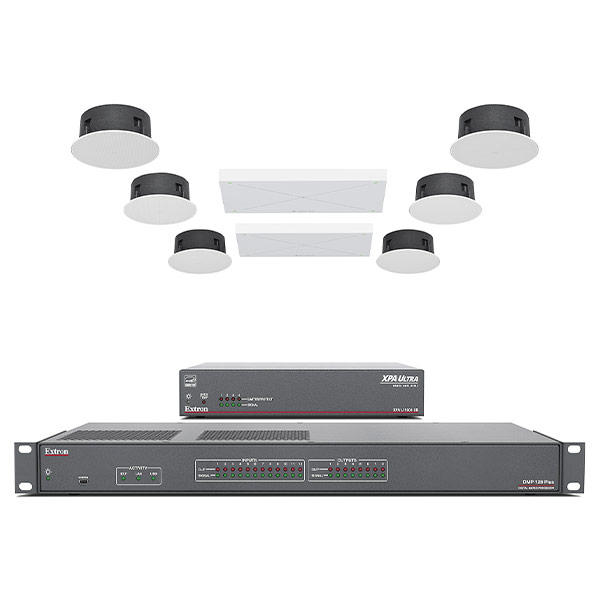

Extra Large Conference Room Audio Equipment

Downloads

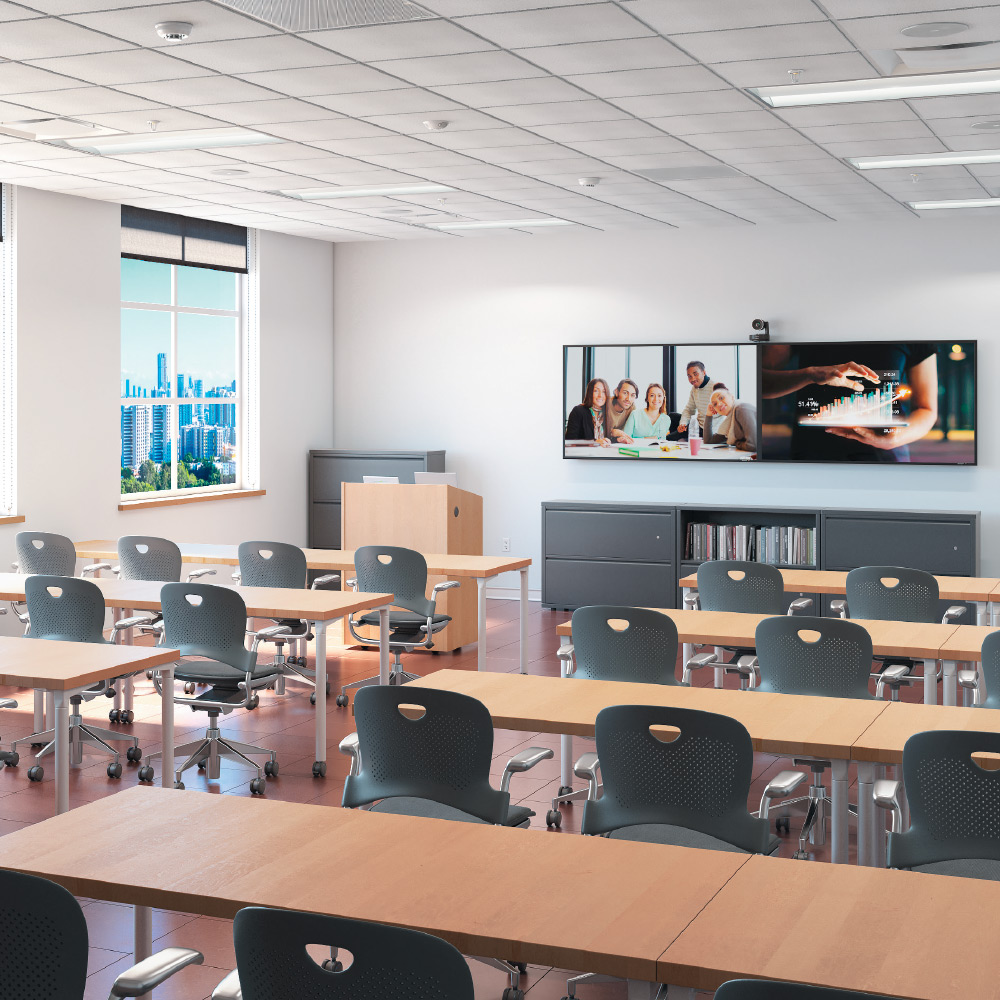

Classroom or Training Room

Space requirements

Typical classrooms accommodate up to 18+ people and include Microsoft Teams Rooms conferencing capabilities for remote learning. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size and use require an audio system with high intelligibility and even sound distribution from ceiling mounted speakers. Ceiling mounted microphones enable in-room student participation.

Extron equipment list

DMP 128 Plus C V AT	12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante	1
XPA U 1004 SB	Four Channel Bridgeable Output Amplifier	1
SF 26CT LP	6.5" Two-Way Ceiling Speakers, 70/100V, Pair	3
SPK14P/1000	14 AWG Plenum Speaker Cable - 150' (45.7 m)	1
USB CFG Cable	USB A Male to USB Mini B Male 6' (1.8 m)	1
Audio Cable	Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m)	1
Network Cable	Cat-6 Plenum network cable - 50' (15.2 m)	2
Network Cable	Cat-6 Plenum network cable - 35' (10.7 m)	2
Network Cable	Cat-6 Non-Plenum network cable - 6' (1.8 m)	1

Sennheiser equipment list

TeamConnect Ceiling 2	Beamforming Ceiling Microphone array	2
SL CM EB US	2' x 2' Flush-mounted Kit	2

Network Switch

Network Switch	10 port PoE network switch	1

Additional Required Equipment

MTR Computer	Microsoft Teams Rooms Computer with Camera and Control interface	1

Capabilities

Connect the room with a Microsoft Teams Rooms meeting
Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
Enterprise level routing flexibility and device compatibility with Dante AoIP
Clear audio playback

Classroom or Training Room Audio Equipment

Downloads

Control Solutions

Delivering an Enhanced Room Experience

Extron has teamed up with partners to extend our Pro Series control capabilities to Microsoft Teams Rooms. With Extron control for Microsoft Teams Rooms, a single user interface is all you need to control every conferencing, audiovisual, and room function. Together, Extron and our partners deliver complete AV and conferencing control across the enterprise. Extron has simplified the conferencing experience and provides a new level of convenience with turn-key, centralized control of AV devices, shades, lighting, audio, and much more – all from the familiar Microsoft Teams Rooms interface.

Key Features

Scalable Microsoft Teams Rooms Solutions – Enable rooms of all sizes with capabilities to switch, distribute, extend, stream, enhance audio, and control AV signals
Room Automation – Integrate automatic system and display controls utilizing Extron Control Systems and sensors
Simplified Room Control – Provide all room and video conferencing controls including one touch meetings with a single interface
BYOD Options – Provides flexibility to use conferencing platform of choice while leveraging all room resources
Supports USB camera control, Extron audio DSP, and other unique capabilities
Extend the capabilities of Microsoft Teams Rooms systems to include automated control for lighting, shades, HVAC, and more
Maintains a consistent user experience across the enterprise while accommodating the needs of a wider variety of meeting room types and technologies
