New Products

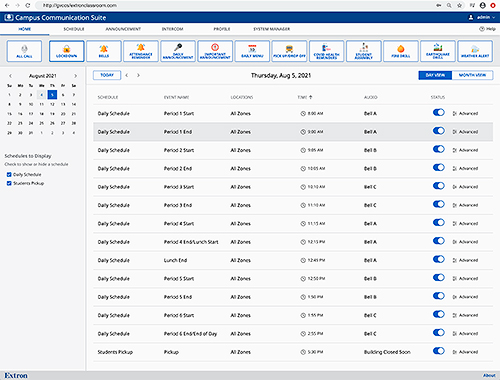

GlobalViewer Campus Communication Suite

The GlobalViewer Campus Communication Suite is a complete solution for unifying campus audio systems and visual messaging under an easy-to-use interface. The suite leverages the power of your existing network to provide bells, public address announcements, intercom communications, and visual messaging throughout campus. The user interface is web-based and allows office personnel to easily manage bell schedules, broadcast announcements to various zones, or have two-way conversations with classrooms.

On this page:
Software
GlobalViewer Campus Communication Suite

Network Managed Bells, PA, Intercom, and Visual Messaging
Switcher/Amplifier
Note: The PVS 407D is available exclusively as a part of
Extron Digital Classroom AV Systems. Not sold separately.

PVS 407D

PVS 407D

IP-Enabled Digital Switcher with Integrated Audio Amplifier

The PVS 407D is the latest generation twisted pair AV switcher and the central component of Extron Classroom Systems.

The switcher provides two local HDMI inputs and two PVT twisted pair inputs that support classroom AV sources at resolutions up to 4K. Local inputs are ideal for sources that do not need direct user access such as Extron ShareLink Pro, Apple® TV, CATV tuners, and streaming decoders. The twisted pair inputs work with switching PVT wallplates to provide HDMI connections within the classroom. They can be installed near the teacher's desk or other locations to provide connectivy for a variety of instructor and student sources, such as a laptop, tablet, media player, or document camera. Wallplates transmit high resolution digital audio and video signals to the switcher over a single CATx shielded twisted pair cable.

The PVS 407D features sophisticated audio capabilities. The integrated 50 watt stereo audio amplifier is capable of driving up to four Extron speakers and filling the room with full, rich sound. The VoiceLift® Receiver input simplifies VoiceLift Microphone installation. Switched and auxiliary line-level inputs support audio only sources such as music players or public address systems. A line level output allows system audio to be used for podcasting or assistive listening. Audio file playback allows the system to play pre-recorded audio announcements stored in switcher memory.

As an ENERGY STAR® qualified AV product, the PVS 407D includes Extron-exclusive power saving modes designed to lower energy usage and reduce operating costs.

The PVS 407D also provides Ethernet configuration and a network switch. This allows the switcher to be configured and controlled over the network, as well as data access for three additional devices over a single network drop.

Features

  • Available exclusively as part of Extron Digital Classroom Systems
  • Two local HDMI inputs and two twisted pair inputs support up to six common classroom AV sources
  • Supports video resolutions up to 4K
  • AV signals are transmitted over a single CATx shielded twisted pair cable and use active twisted pair technology for high reliability and maximum performance
  • Integrated 50 watt rms audio amplifier for stereo or dual mono audio
  • Audio file playback allows the system to play pre-recorded audio announcements stored in switcher memory
  • Ethernet configuration and switch for remote setup and allowing three devices to share a single network drop
  • ENERGY STAR® qualified AV product designed to lower energy usage and reduce operating costs
  • VoiceLift Receiver input simplifies installation of the VoiceLift Microphone
  • Switched and auxiliary line-level inputs support music players and 3rd party public address systems
  • Configurable audio line output for podcast recording, assistive listening systems, or adding an additional amplifier
  • Optional PVS 407D Audio Decoding License upgrade allows the PoleVault switcher to directly decode and play bells and announcement audio from GlobalViewer Campus Communication Suite
Controller/Amplifier
Note: The PVCA 452 is available exclusively as a part of the
PlenumVault Direct View System and VoiceLift Pro Microphone System. Not sold separately.

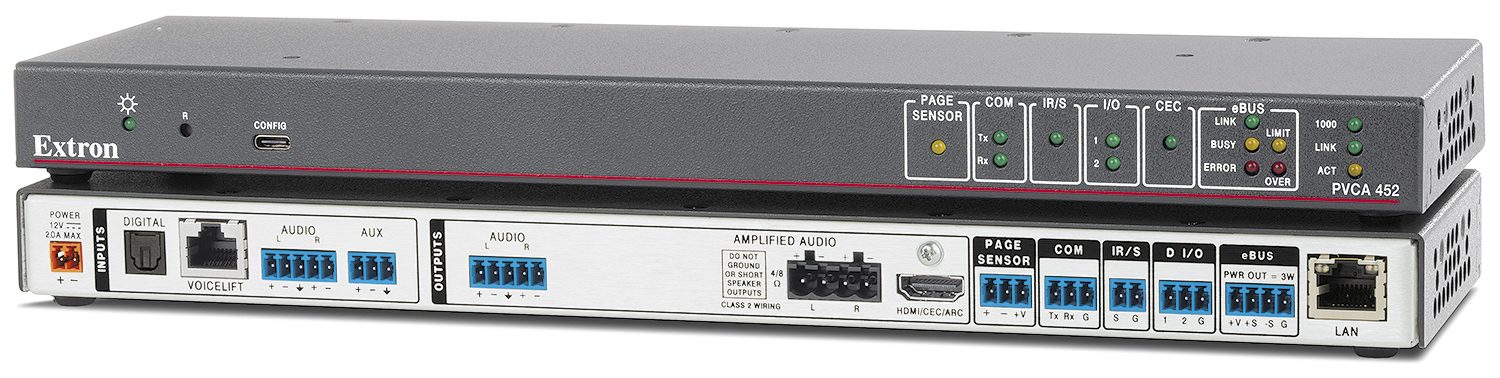

PVCA 452

PVCA 452

Controller Amplifier

The PVCA 452 Controller Amplifier is the central component of the PlenumVault Direct View System and VoiceLift Pro Microphone System. It features sophisticated audio capabilities, including an integrated 50 watt stereo amplifier that is capable of driving four Extron speakers and filling the room with full, rich sound. The VoiceLift® Receiver input simplifies VoiceLift Microphone integration. The PVCA 452 can also mix audio from the microphone system as well as additional audio sources, allowing instructors to narrate over AV lesson presentations, add music, and perform other sophisticated audio management to make AV lessons more engaging. A line level output allows system audio to be used for remote learning or assistive listening. Audio file playback allows the system to play pre-recorded audio announcements stored in memory.

The PVCA 452 also has built-in control capabilities that simplify AV integration for learning spaces. Ethernet, RS-232, IR, serial, digital I/O, and eBUS ports, plus CEC capability are available to control and interface with other equipment in the classroom. Compatibility with several types of user interfaces enables you to accommodate a variety of system designs. The PVCA 452 can also be configured and controlled over the network via Ethernet.

Features

  • Available exclusively as part of PlenumVault Direct View Classroom System and VoiceLift Pro Microphone System
  • Includes a built-in control processor that provides flexible AV control options and supports a variety of user interfaces
  • VoiceLift Receiver input allows for simple integration of voice reinforcement with VoiceLift Pro Microphone systems
  • Supports mixing audio from the VoiceLift Pro microphone system, analog or digital program audio, and auxiliary audio
  • Auxiliary line level input supports music players and 3rd party public address systems
  • Integrated 50 watt rms audio amplifier for stereo or dual mono audio
  • Ethernet configuration for remote setup
  • Configurable audio line level output for assistive listening systems or adding an additional amplifier
  • Audio file playback allows the system to play pre-recorded audio announcements stored in the unit’s memory
  • Receive program audio from the display over the same HDMI cable as video using ARC – Audio Return Channel
  • Optional LinkLicense for Audio Streaming allows the PVCA 452 to directly decode and play bells and announcement audio from GlobalViewer Campus Communication Suite
  • Optional LinkLicense for User Interfaces allows a mobile device or computer to be used as the system’s primary control interface
  • CEC – Consumer Electronics Control capability enables triggering of standard, built-in CEC commands to control displays or other AV devices connected over HDMI
Codec

Note: The CC 100C is available exclusively as part of an Extron Classroom AV System and is not sold separately as a standalone product.

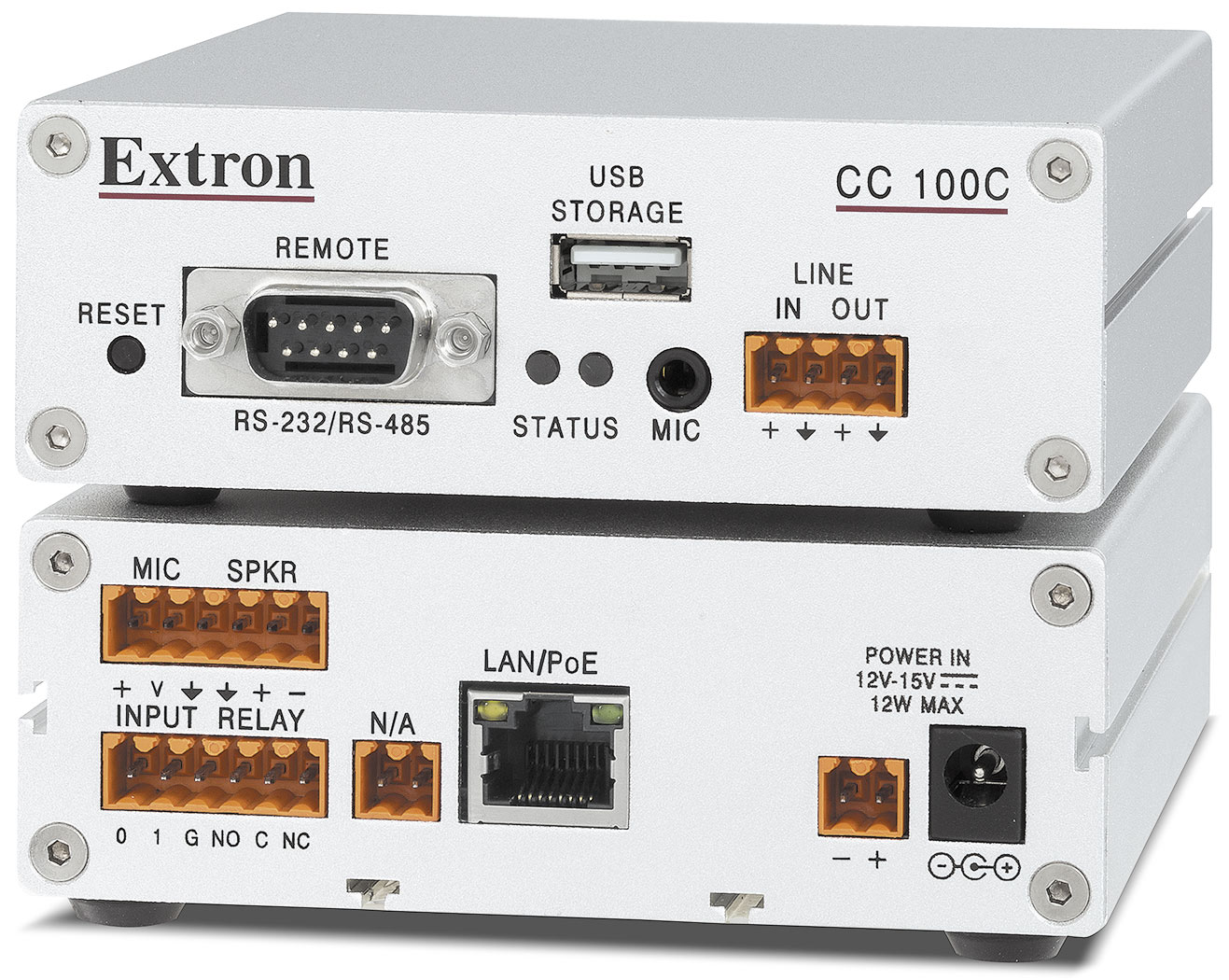

Extron CC 100C

Campus Communication Suite Codec

The CC 100C is a network audio encoder and decoder designed for use with Extron GlobalViewer® Campus Communication Suite. The CC 100C allows bells and announcements to be broadcast in the classroom. It also provides a two-way communication path between the teacher and the office or help desk operator. GlobalViewer Campus Communication Suite is a complete solution for unifying all campus audio systems under an easy-to-use interface. The suite leverages the power of your existing network to provide bells, public address announcements and intercom communications throughout the campus. The CC 100C works in conjunction with an Extron Classroom AV System, the CC 101P intercom panel, and the suite to provide bells, PA announcements, and intercom over the network.

Features

  • Available exclusively as part of the Extron GlobalViewer Campus Communication Suite
  • Decodes bell and announcement audio streams from GlobalViewer Campus Communication Suite
  • Interfaces with Extron Classroom AV Systems to broadcast bells and public address announcements
  • Works with the CC 101P intercom panel to provide two-way intercom communications over the network
Intercom Panel

Note: The CC 101P is available exclusively as part of an Extron Classroom AV System and is not sold separately as a standalone product.

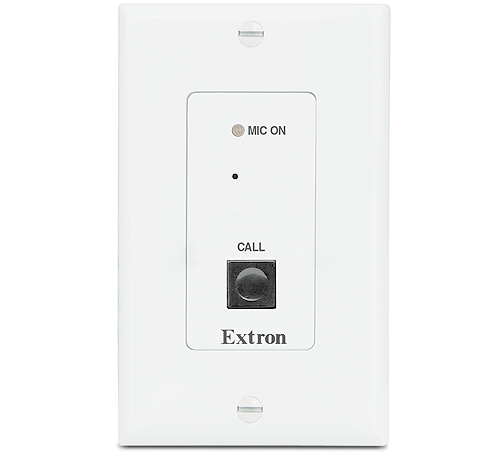

Extron CC 101P
CC 101P

Campus Communication Suite Intercom Panel

The CC 101P is an intercom panel designed for use with Extron GlobalViewer® Campus Communication Suite. This decorator-style wallplate features a microphone and push-to-talk call button that allows the user to communicate with the office or help desk operator. GlobalViewer Campus Communication Suite is a complete solution for unifying all campus audio systems under an easy-to-use interface. The suite leverages the power of your existing network to provide bells, public address announcements and intercom communications throughout campus. The CC 101P intercom panel works in conjunction with the CC 100C codec and the suite to provide two-way voice communications over the network.

Features

  • Available exclusively as part of the Extron GlobalViewer Campus Communication Suite
  • Includes a microphone and push-to-talk call button
  • Works with the CC 100C codec and GlobalViewer Campus Communication Suite software to provide two-way intercom communications over the network
  • Includes decorator-style wallplate
