Extron Digital Classroom AV Systems. Not sold separately.
PVS 407D
IP-Enabled Digital Switcher with Integrated Audio Amplifier
The PVS 407D is the latest generation twisted pair AV switcher and the central component of Extron Classroom Systems.

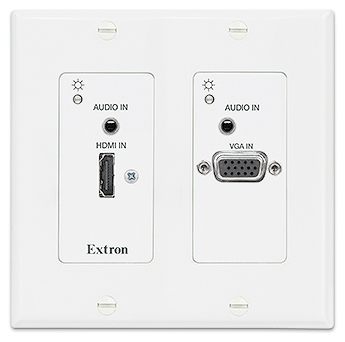

The switcher provides two local HDMI inputs and two PVT twisted pair inputs that support classroom AV sources at resolutions up to 4K. Local inputs are ideal for sources that do not need direct user access such as Extron ShareLink Pro, Apple® TV, CATV tuners, and streaming decoders. The twisted pair inputs work with switching PVT wallplates to provide HDMI connections within the classroom. They can be installed near the teacher's desk or other locations to provide connectivy for a variety of instructor and student sources, such as a laptop, tablet, media player, or document camera. Wallplates transmit high resolution digital audio and video signals to the switcher over a single CATx shielded twisted pair cable.
The PVS 407D features sophisticated audio capabilities. The integrated 50 watt stereo audio amplifier is capable of driving up to four Extron speakers and filling the room with full, rich sound. The VoiceLift® Receiver input simplifies VoiceLift Microphone installation. Switched and auxiliary line-level inputs support audio only sources such as music players or public address systems. A line level output allows system audio to be used for podcasting or assistive listening. Audio file playback allows the system to play pre-recorded audio announcements stored in switcher memory.
As an ENERGY STAR® qualified AV product, the PVS 407D includes Extron-exclusive power saving modes designed to lower energy usage and reduce operating costs.
The PVS 407D also provides Ethernet configuration and a network switch. This allows the switcher to be configured and controlled over the network, as well as data access for three additional devices over a single network drop.
Download the Flat Field White Paper (2.1 MB)
